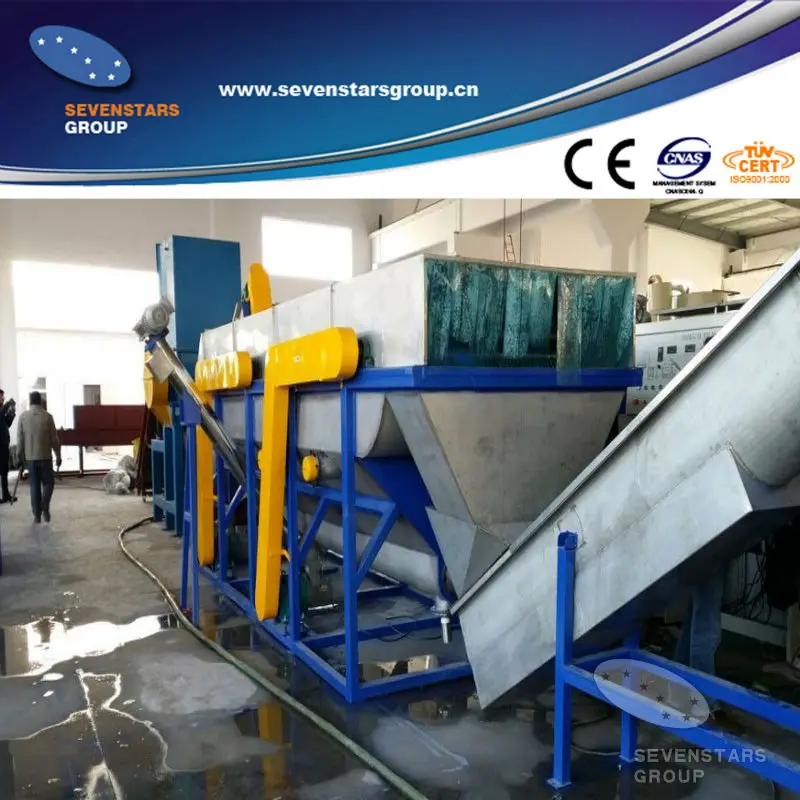

Waste agriculture film washing line

FOB Reference Price:Get Latest Price
$10,000.00 - $30,000.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
film washing line
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Application:
film washing line
Automatic Grade:
Automatic
Place of Origin:
Jiangsu, China (Mainland)
Brand Name:
sevenstars
Voltage:
380V
Dimension(L*W*H):
25*3*3m
Certification:
CE&ISO9001
Warranty:
one year
application:
waste agreculture film washing line
mositure:
less than 1%
After-sales Service Provided:
Engineers available to service machinery overseas
Production Capacity:
300-1000kg/hr
Power(W):
based on capacity
Weight:
10ton
Supply Ability
Supply Ability:
100 Set/Sets per Year
Packaging & Delivery
Packaging Details
standard export packing for waste agriculture film washing line
Port
shanghai

plastic film crushing and washing machine



Features:
1) Environmentally friendly composite plastic-cellulose fiber materials
2) The knievs can be shaped using carpentry and construction tools
3) Applications: Indoor decoration film, packing film, pallet making production,agricultural film etc.
4) Capacity: 300-1000kg/h

5)Use:clean PE PP film,dirty PP PE film,PP PE film with oil.



Waste PP PE film washing machine with specialized design for customer



Consideration for our customer we will design different PP PE washing line for our customer:
1)We provide different capacity for our customer: 300-1000kg/h.
2)According to your material, you may choose different device or you may choose full automatic line or semi-automatic line.
3)We providing turn-key project for our customer. Design-product-installment-testing.
4)Based on your workshop condition, Our design always matched to your workshop mostly.



Part parameter of waste PP PE film washing machine



WASTE PE.PP FILM CRUSHING WASHING LINE(OUTPUT:500-700kg/hr)

NO

component items

POWE(kw)

 L*W*H(mm)

 WEIGHT
  (kg)

QTY

1

Belt conveyor

1.5

6000*900*600(3200)

 600

 1

2

PS-1000 Crusher with water

45

1650*1660*2800(2800+920)

1700

3

Screw Loader 1(Φ500)

11

3500*800*1300

700

1

4

Single Screw friction washing

11+0.75

5300*1300*2150

2200

1

5

Screw Loader 2(Φ500)

11

3500*800*1300

700

1

6

Floating Tank

2.2+1.1+1.5

6000*1200*2150

2300

1

7

Screw Loader 3(Φ500)

11

3500*800*1300

700

1

8

Horizontal dryer

30

2300*1750*1900

2200

1

9

Silo



1500*900*3400

130

1

10

electrical control system



800*500*2000

520

1

1000*550*1150

120

1

1,length of production line: 27 m;
2,installed power:128 kw;
3,equipment noise:1 meter≤80dB; 5  meters≤75dB;
4,water consumption for recyling 1T waste material:1m³ (circulating water);
5,oil burning boiler steam volume :300kg/h  ;steam pressure 0.7MPa;
vapor temperature :170°C;average oil consumption per hour :15-25L;
