Water ring cutting plastic pp pe film recycling machine with compactor

  • 1 - 1 Sets
    $60,000.00
  • >=2 Sets
    $59,900.00
Model Number:
plastic recycling machine
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets) Less
Samples:
$200.00 /Set | 1 Set (Min. Order) | Buy Samples
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Warranty:
1 year
After-sales Service Provided:
Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Online support, Video technical support, Engineers available to service machinery overseas
Place of Origin:
Jiangsu, China
Brand Name:
SEVENSTARS
Voltage:
customerized for plastic recycling machine
Weight:
based on the capacity
Certification:
CE/ISO
Screw Design:
Single
Type:
Granulating Production Line
Dimension(L*W*H):
according to the output
Applicable Industries:
Manufacturing Plant
cutting type:
water-ring for plastic recycling machine
color:
by buyer
controler:
PLC for plastic recycling machine
Material:
PP/PE
Capacity:
100-800kg/hour
Power:
depend on the capacity
Supply Ability
Supply Ability:
5 Set/Sets per Month
Packaging & Delivery
Packaging Details
sea worthy packing for plastic recycling machine
Port
Shanghai
Video Description
Contact Information

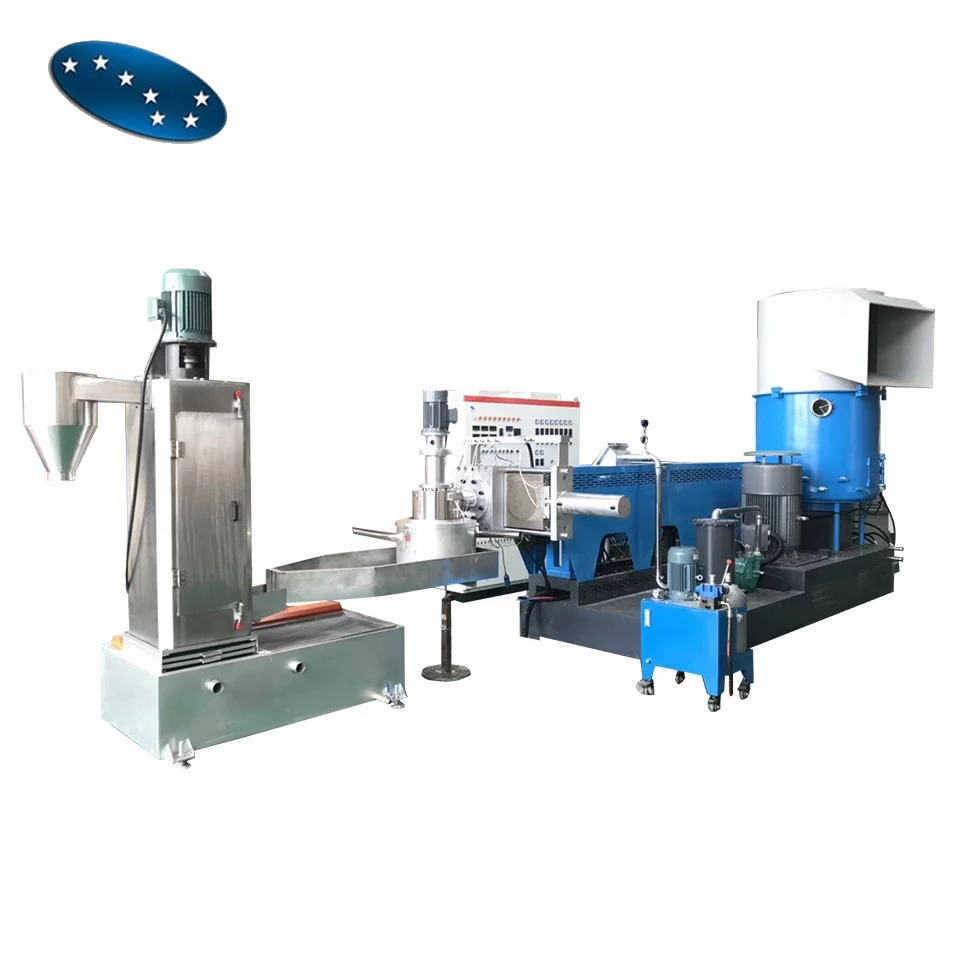

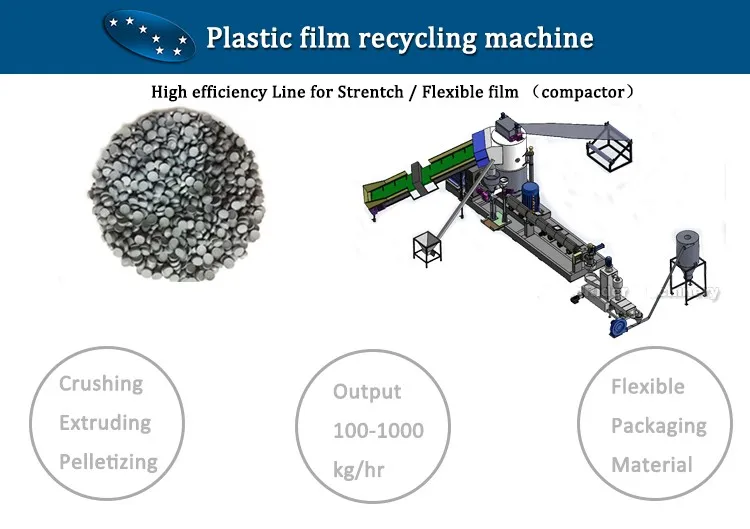

 Water ring cutting plastic pp pe film recycling machine with compactor

1



Plastic recycling machine :

raw material:PE plastic film

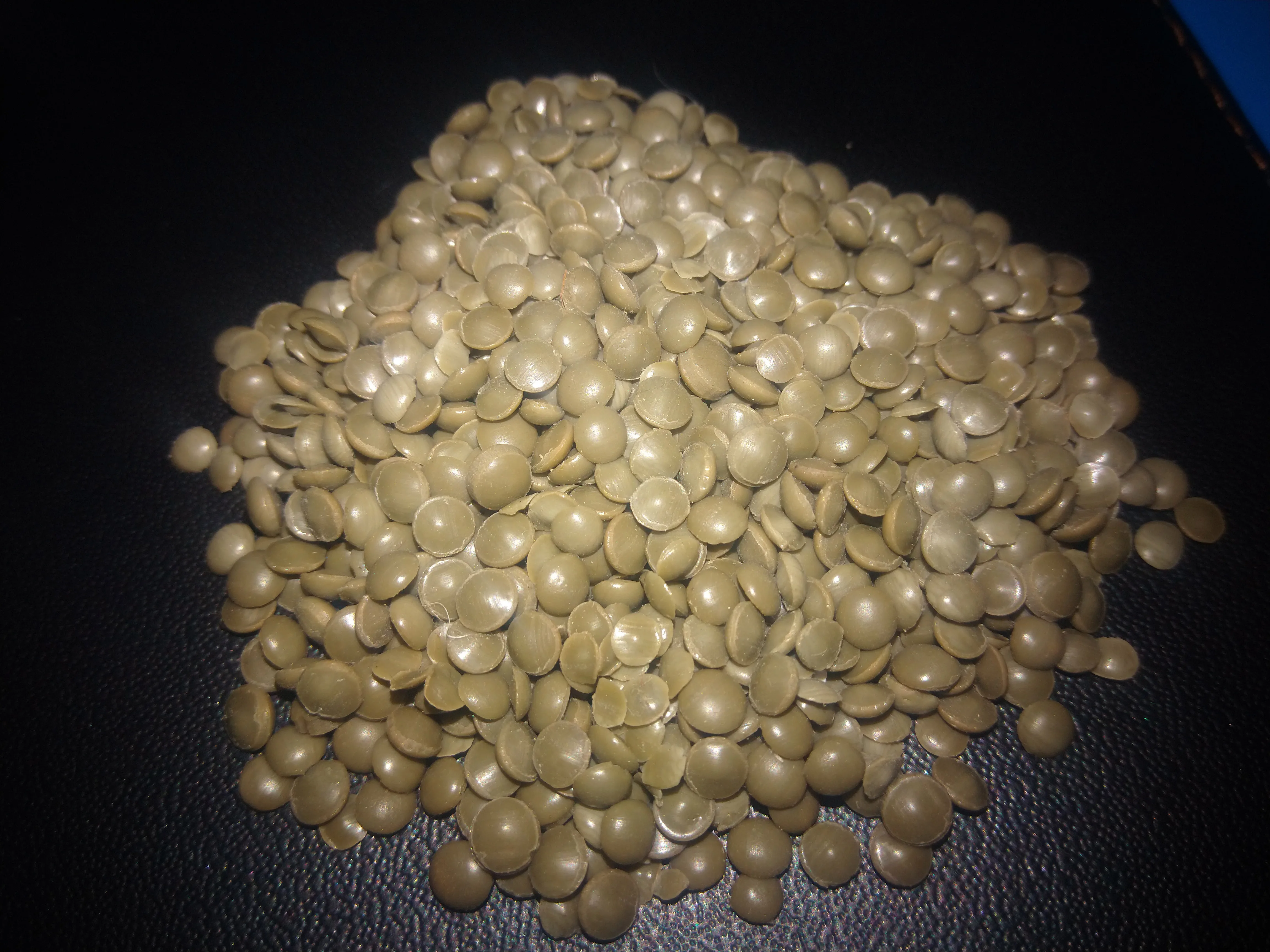

final product: PE granules

output:100-800kg/h

cutting type:water ring



Components included in plastic recycling machine :

1.feeding conveyor   2. film compacting machine   3. screw barrel    4.fast speed double post non-stop hydraulic screen changer   5. water flush pelletizing system   6. water cooling trough    7.Centrifugal dewatering machine   8.vibration screen     9. conveying blower    10. store silo



Advantages of this plastic recycling machine :



PE/PP recycling granulating machine is special equipment for the PE PP film recycling granulating, it equipped with comacting machine which cound pre- compact the film into smaller granules, then easily feed into screw barrel of extruder, its efficiency is high and can improve production capacity and save labour cost.



it has two vacuum exhuasting mouth on extruder barrel which can fully vent the moisture in the material and hence the final granule quality will be very perfect.



at the end of screw barrel, it equipped with double post fast speed hydraulic non -stop screen changer which can effetively filt out the dirty in the plastic melt.



the pelletizing adopts water flush pelletizing which is easier to operate, and the shape and appearance of granule is good.





 Main parameters of the machine:



Model of PE/PP plastic pelletizing line

SJ85

SJ100

SJ130

SJ160

extruder screw diameter

85

100

130

160

main motor of extruder

55

90

       132

160

main motor of compacting machine

37

55

       75

90

production capacity

100-150

200-300

300-400

500-600

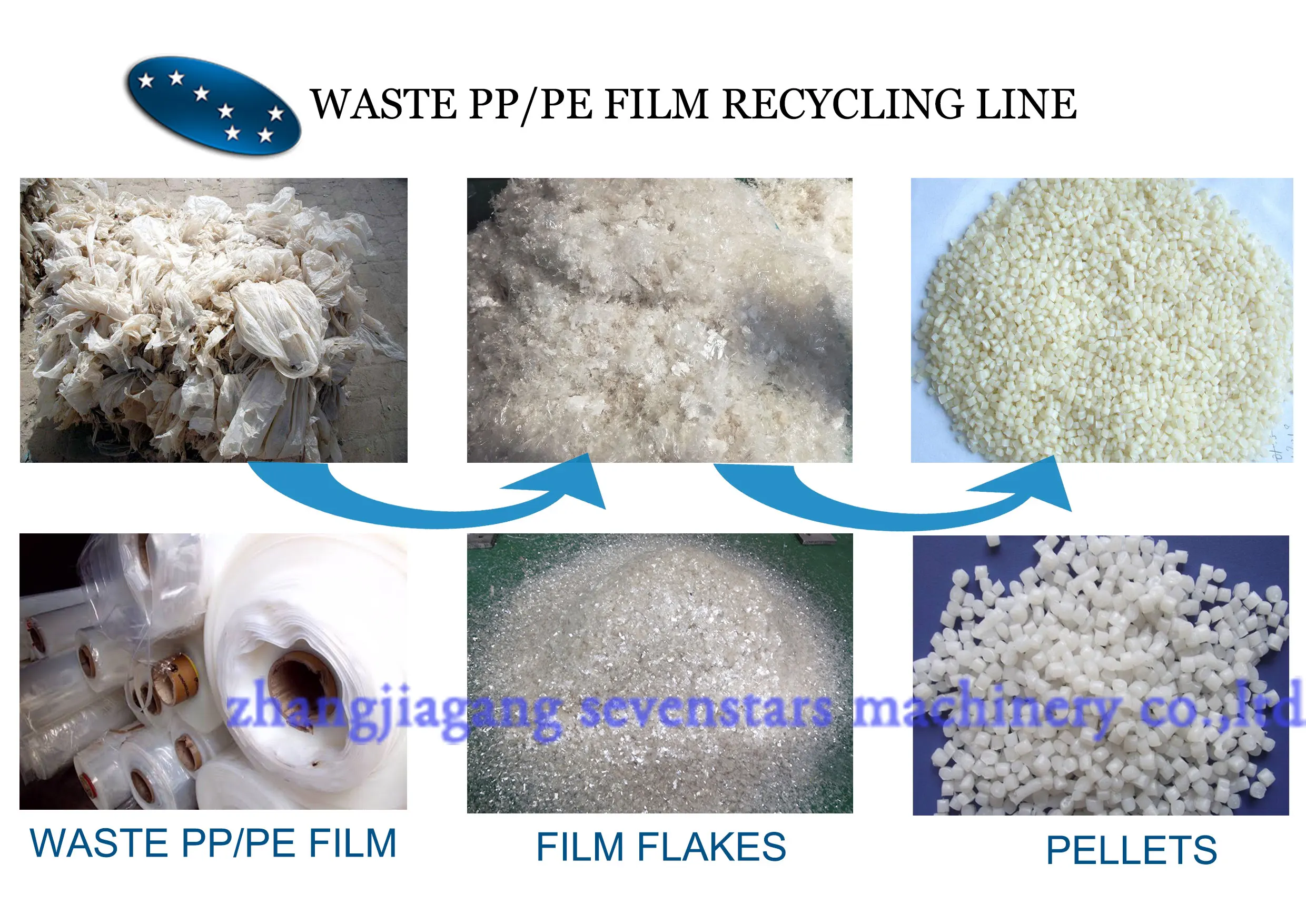

 waste pepp film recycling line

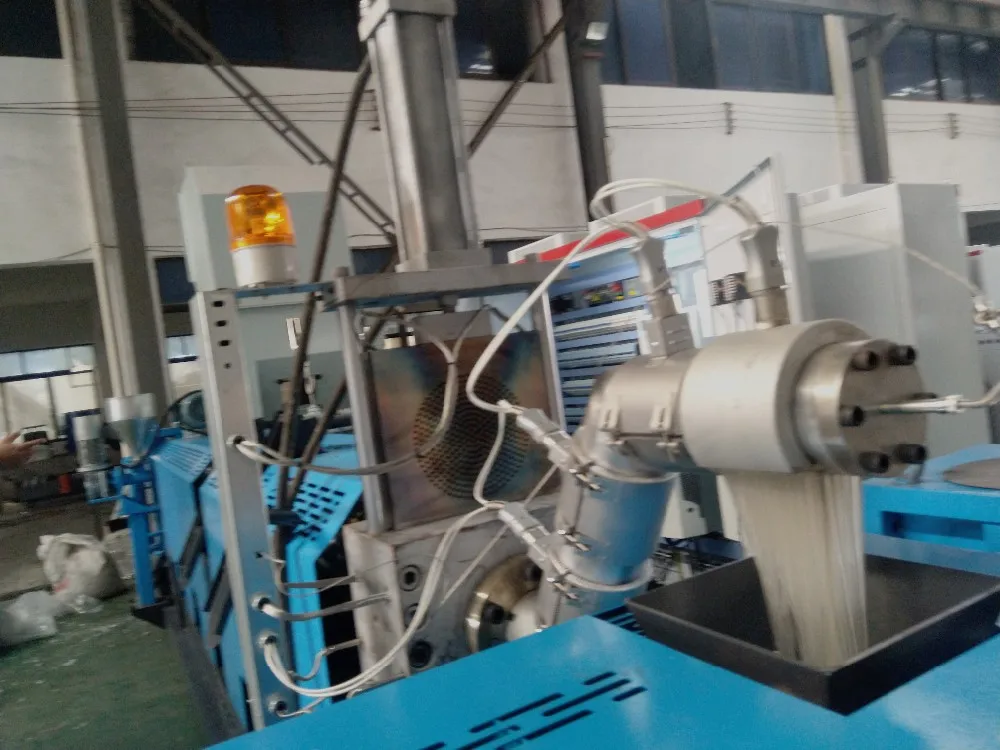

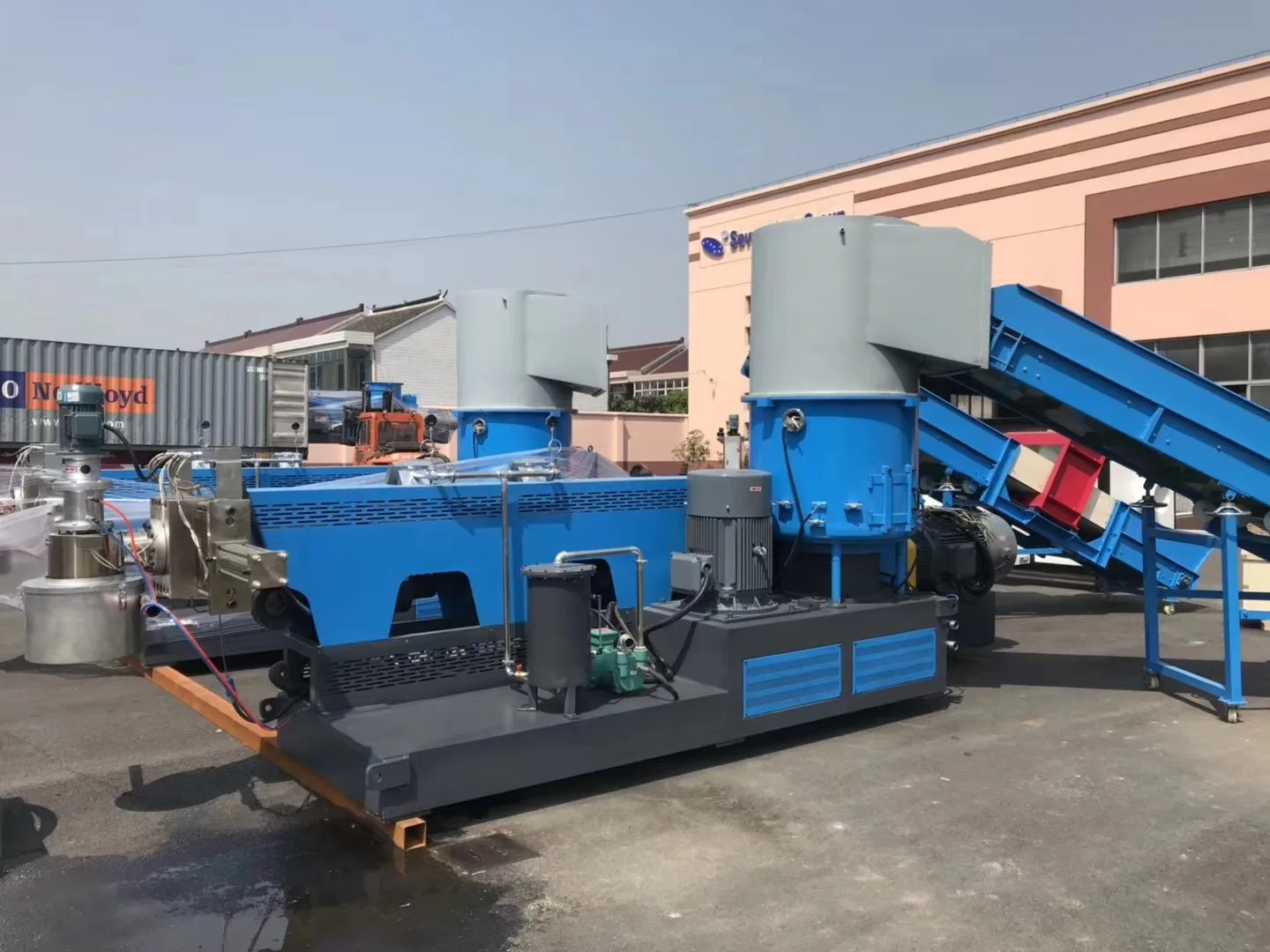

Reference pictures:

 IMG_7871IMG_20190729_164547IMG_20190729_164504IMG_20190703_094023applicationRecycle materialcompany
