new style PP pelletizing equipment / PP PE film granulator machine with compactor

FOB Reference Price:Get Latest Price
$20,000.00 - $50,000.00 / Set | 1 Set/Sets (Min. Order)
Model Number:
PP pelletizing equipment
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 45 Negotiable
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Warranty:
one year
Place of Origin:
Jiangsu, China
Brand Name:
SEVENSTARS
Voltage:
customerized
Weight:
10T
Certification:
CE
Screw Design:
Single
Type:
Granulating Production Line
Dimension(L*W*H):
depend on the capacity
After-sales Service Provided:
Engineers available to service machinery overseas
L/D Main screw:
23:1-48:1
Used:
PP pelletizing equipment
Contactor:
Siemens
Material:
PP/PE
Capacity:
100-500kg/hour
Power:
according to the capacity
Supply Ability
Supply Ability:
3 Set/Sets per Month
Packaging & Delivery
Packaging Details
sea worthy packing for PP pelletizing equipment
Port
Shanghai
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 45 To be negotiated
Contact Information

.jpg

PP pelletizing equipment :



The flow chart of PP pelletizing equipment :

Screw conveyor→ PP flake screw doser→ SJ120/25 Extruding system(mother type)→ Die head and high speed net exchanging system→ SJ120/10 Extruding system(baby type)→ Die head and high speed net exchanging systemWater cooling bath → air dryer→ pelletizer→ Silo



Necessary machine for PP pelletizing equipment :

  • 1 set of screw conveyor
  • 1 set of PP flake screw doser
  • 1 set of SJ120/25 Extruding machine(mother type)
  • 1 set of High speed net exchanging system
  • 1 set of SJ120/10 Extruding machine(baby type)
  • 1 set of High speed net exchanging system
  • 1 set of Water cooling bath
  • 1 set of air dryer
  • 1 set of pelletizer
  • 1 set of Silo
  • 1 set of Control cabinet

Spare part list

No

Name

Qty

Application

1

Screw dismantle tool

1 set

Screw dismantle

2

Pelletizing blade

1pcs

String cutter

3

Pressure sensor

1pc

Mould

4

Thermocouple

5pcs

Barrel

5

Oil seal for gearbox frame

1pc

Gearbox

6

Low voltage circuit-breaker, AC contactor

1 package

Electric cabinet

7

Heating element

2pcs

For screw barrel

8

Contact and relay

2pcs

For control box

9

Many others not listed above

/

For whole machine

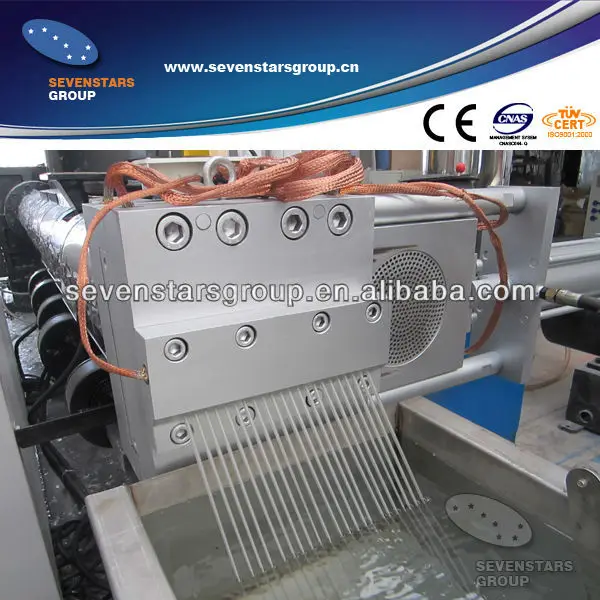

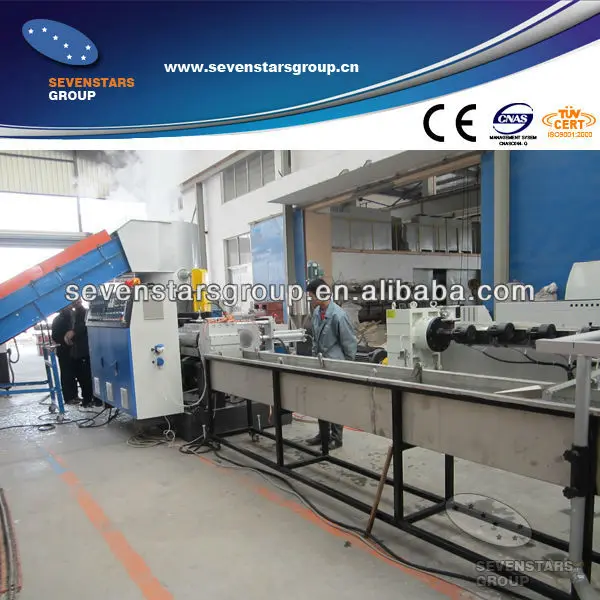

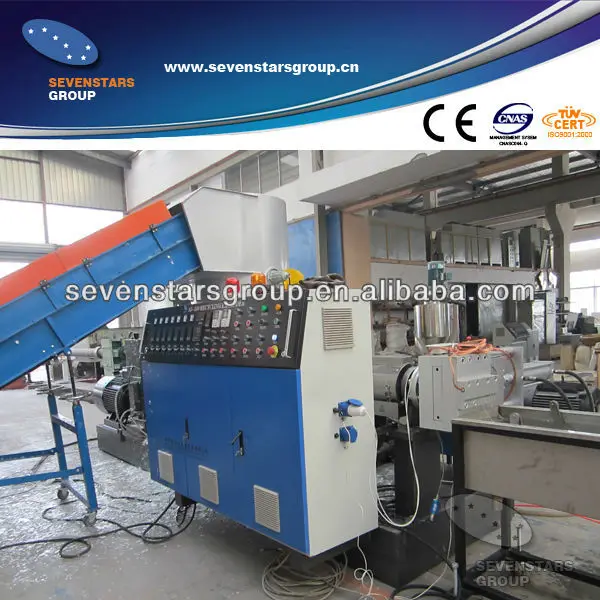

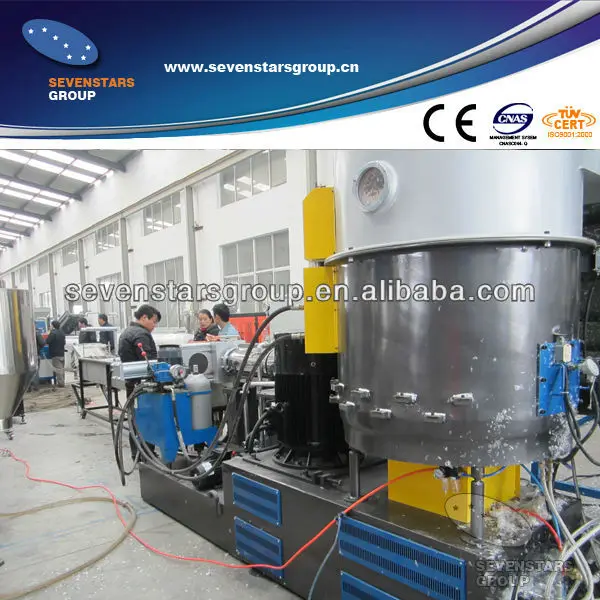

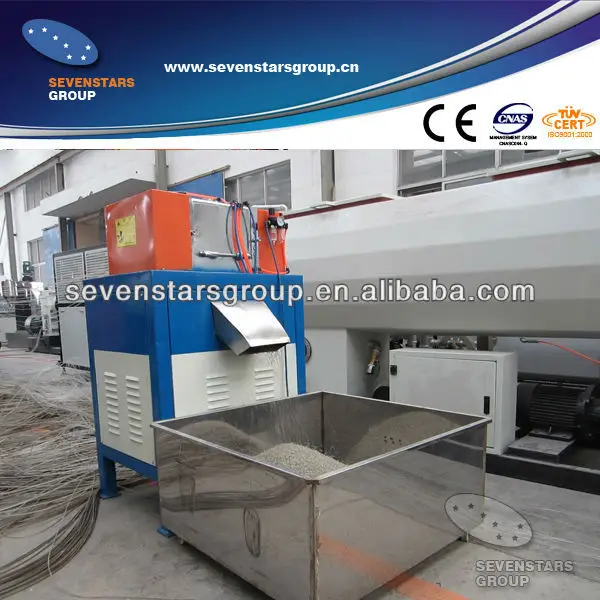

Reference pictures:




QQ20140329150601certificateour office
