Superfine rubber grinding machine

FOB Reference Price:Get Latest Price
$20,000.00 - $30,000.00 / Set | 1 Set/Sets (Min. Order)
Shipping:
Support Sea freight
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Jiangsu, China
Brand Name:
Sevenstars
Model Number:
BDX-300 rubber grinding machine
Dimension(L*W*H):
1100*1100*1700mm
Type:
Rubber Cutting Machine
Condition:
New
Certification:
CE and ISO
Voltage:
380V or customised
machine name:
rubber grinding machine
smash temperature:
<30℃
feeding size:
1-10mm
grind disk:
300mm
cooling system:
by water or air
After-sales Service Provided:
Engineers available to service machinery overseas
Power(W):
45
Weight:
1.6 tom
Warranty:
one year
Supply Ability
Supply Ability:
20 Set/Sets per Month
Packaging & Delivery
Packaging Details
nude packing&Electricity box wooden splints packing.
Port
shanghai
Lead Time :
20 days after receive the deposit

Superfine rubber pulverizer/grinding machine/milling machine



BDX-300 new vertical superfine rubber milling machine is the company's well-developed and the

the machine is one of the four patent certification products.

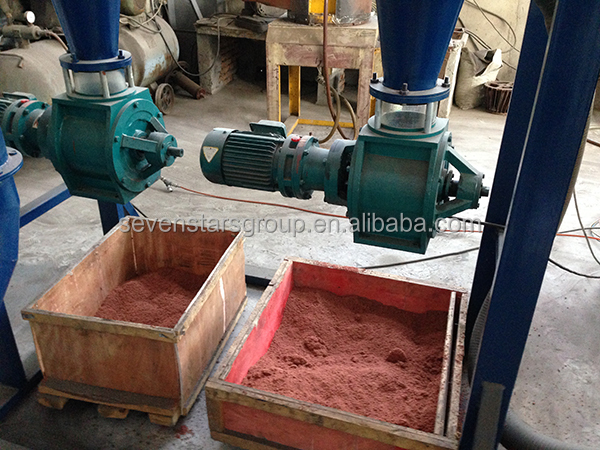

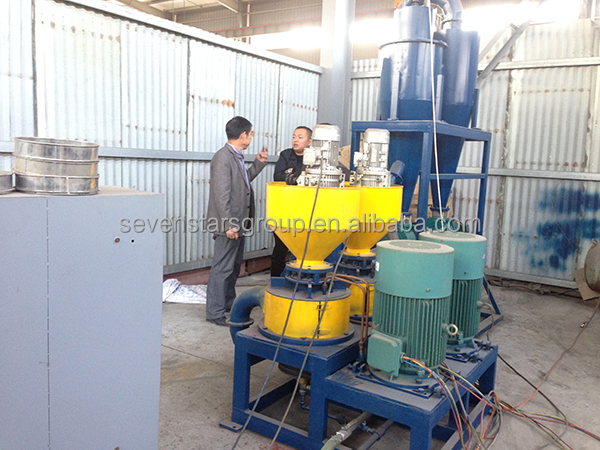

The machie consists of one or more smash hosts,cyclone collector structure and the entire electric.

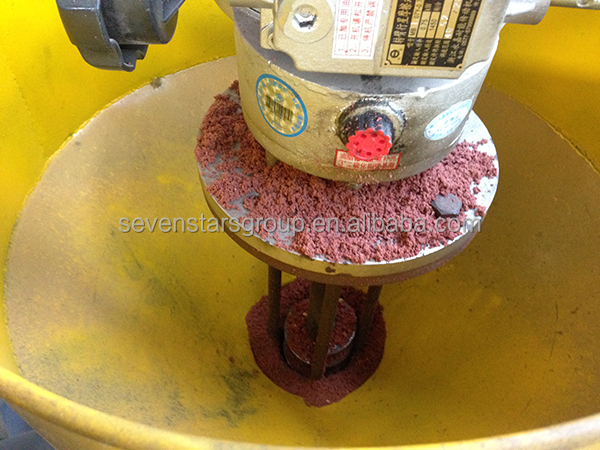

The basic principle of the two millstone is cut the material by the relative movement,to achieve the purchose of crushing and milling.Using wind ,water cooled effectively controlled grinding temperature,

to ensure the quality of the material to be crushed

The advantage of this mchine have compact structure,low noise,high output,low energy consuption,

simple operation,easy accessibility,the finenss of powder is uniformity.

ModelBDX300
Capacity(kg/hr)100-250
Feeding size(mm)1-10
Discharge size(mesh)30-200
Motor power(KW)22+0.75+0.6/Single
Smash temperature(℃)<30
Weight(t)1.6
Overall dimensions1100*1100*1700
