Plastic recycling granulator production line

FOB Reference Price:Get Latest Price
$30,000.00 - $70,000.00 / Set | 1 Set/Sets (Min. Order)
Model Number:
SJ
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Warranty:
1 year
After-sales Service Provided:
Field maintenance and repair service, Video technical support, Engineers available to service machinery overseas
Place of Origin:
Jiangsu, China
Brand Name:
SEVENSTARS
Voltage:
380V 50HZ 3 phase
Weight:
15TONS Plastic recycling granulator production line
Certification:
CE ISO SGS
Screw Design:
Single
Type:
Granulating Production Line
Dimension(L*W*H):
based on the model Plastic recycling granulator production line
Inverter:
ABB
Color:
customerized Plastic recycling granulator production line
Material:
PP/PE
Capacity:
100-800kg/hour Plastic recycling granulator production line
Power:
based on model Plastic recycling granulator production line
Supply Ability
Supply Ability:
30 Set/Sets per Year
Packaging & Delivery
Packaging Details
seaworthy packing Plastic recycling granulator production line
Port
Shanghai seaport Plastic recycling granulator production line

Plastic recycling granulator production line



Process flow of the Plastic recycling granulator production line :

Conveyor→ PE film compactor→ Extruding system→ Die-head and High speed Net exchanging system→ water ring pelletizing machine → water tank → dewatering machine→ vibrating sieve→ Air Blower → Storage hopper



Detailed description of   Plastic recycling granulator production line

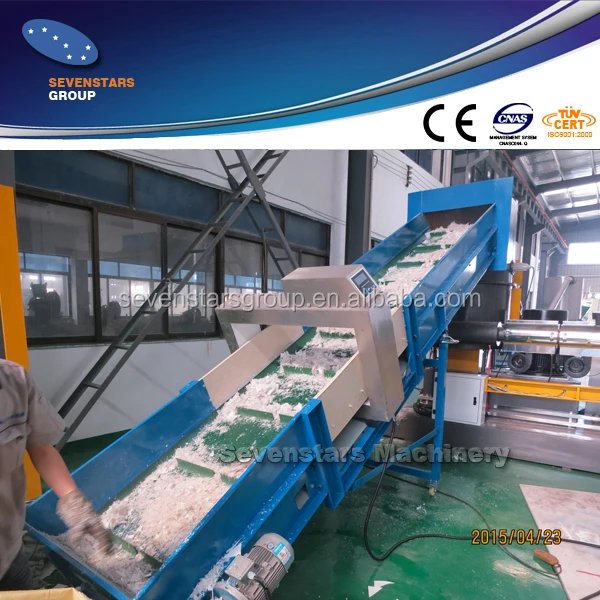

1. Conveyor:convey PP PE film or flakes into compactor.

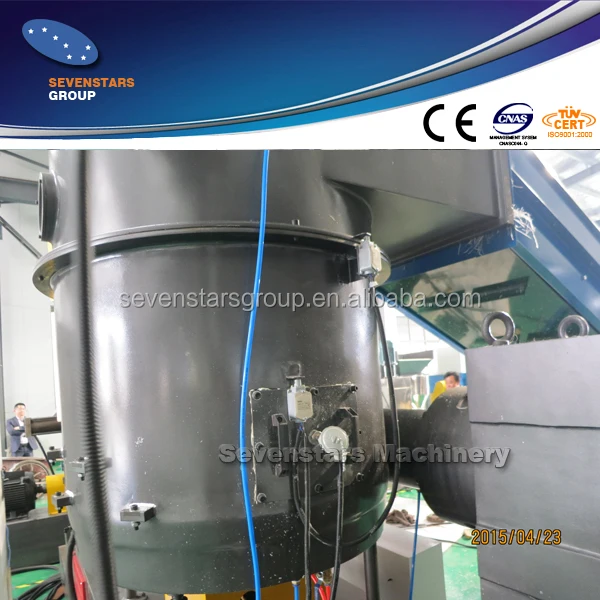

2. PE film compactor:crushing and compress film,and feed compressed film into extruder forcedly,to make the production capacity high and stable.

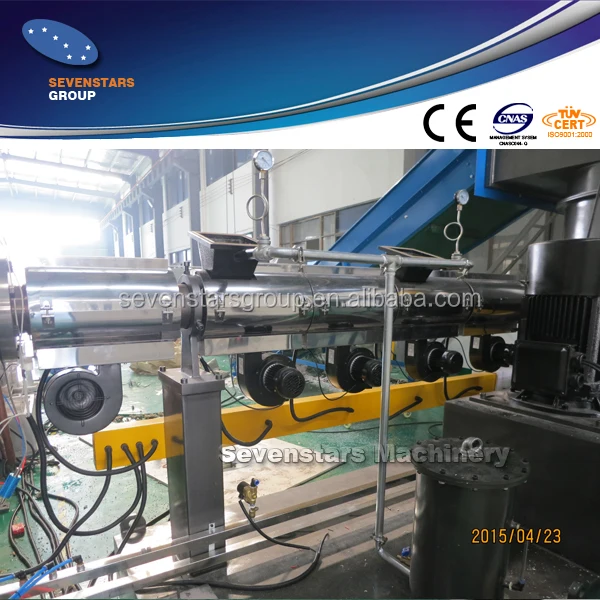

3.Extruding system:plasticizing material and exhausting gas.

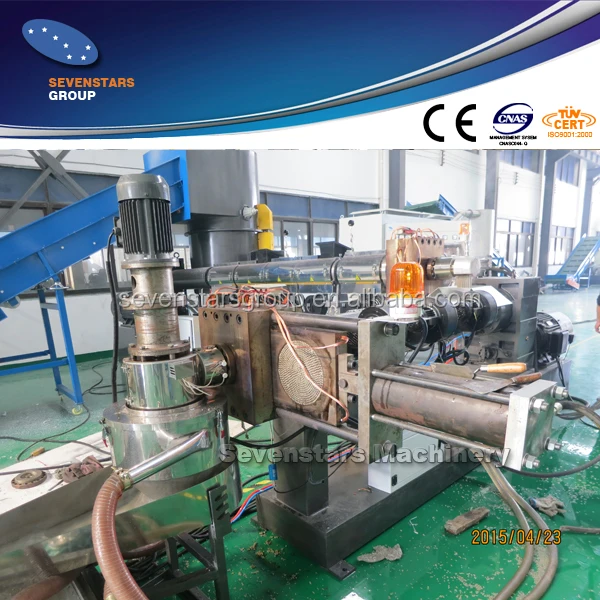

4.High speed Net exchanging system and Die-head:filter material impurity,to make production more stable.

5.water ring pelletizing machine:cutting pellets in water.

6.Water tank:cooling pellets.

7.Dewater machine:make pellets dry.

8.Vibration sieve:remove bad pellet and keep good pellet.

9.Air Blower:convey good pellets into silo.

10:Storage silo:keep pellet.



Thecnical parameters of Plastic recycling granulator production line

Model

L/D

Output

Speed of Screw Rotation

Power

Center Height

SJ-50/33

33:1

20-80 kg/h

12.5-130 r/min

37kw

1000 mm

SJ-65/33

33:1

80-150 kg/h

33-130 r/min 20-120r/min

45kw 55kw

1000 mm

SJ-75/33

33:1

120-280 kg/h

20-120 r/min

75kw 90kw

1000 mm

SJ-90/33

33:1

150-450 kg/h

33.3-110 r/min

110kw 160kw

1000 mm

SJ-120/33

33:1

300-600 kg/h

20-100 r/min

260kw

1200 mm

SJ-150/33

33:1

450-700 kg/h

7-80 r/min

315kw

1200 mm

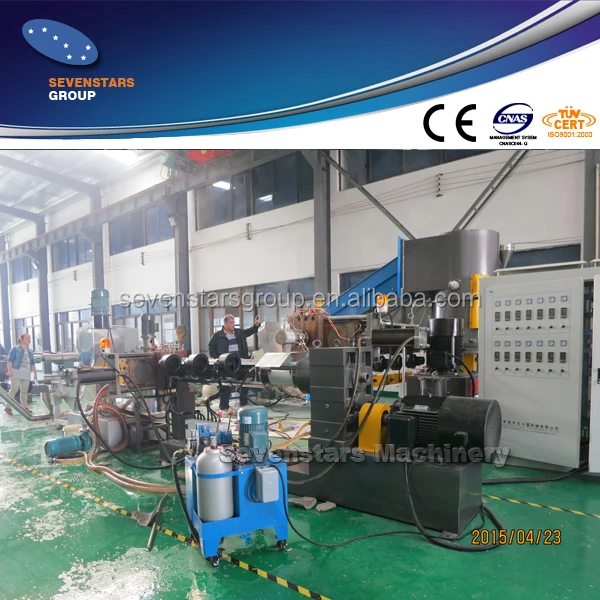

Detailed pictures:
