PVC crust foam board extruding machine / PVC crust foam sheet extruding machine

FOB Reference Price:Get Latest Price
$80,000.00 - $180,000.00 / Set | 1 Set/Sets (Min. Order)
Model Number:
SJSZ80/156
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Warranty:
1 year
After-sales Service Provided:
Free spare parts, Field installation, commissioning and training, Online support, Engineers available to service machinery overseas
Place of Origin:
Jiangsu, China
Brand Name:
Sevenstars
Voltage:
380V 50HZ
Application:
Sheet
Weight:
28T
Certification:
CE ISO
Screw Design:
Double-screw
Plastic Processed:
PVC
Dimension(L*W*H):
25m*3m*3.5m
Color:
Customizable
Automatic Grade:
Automatic
Power(W):
75KW
Supply Ability
Supply Ability:
15 Set/Sets per Year
Packaging & Delivery
Packaging Details
wrapped by plastic film for PVC foam board extruding machine
Port
shanghai for PVC foam board extruding machine
Product Description

Product Application

PVC crust foam board extruding machine / PVC crust foam sheet extruding machine

Screw Design: Conical double screw
Model Number: SJSZ80/156
Voltage: 380-440V
Main Motor Power: 75kw
Dimension (L*W*H): 25m*3m*3m
Weight: 28t
Output of plastic plate: 400kg/h
Plastic Processed: PVC and WPC
Finished Product: PVC/WPC foam board
Specification of finished board: 1220*2440*(3-20) mm or 915*1830*(3-20)mm
Density of finished board: 0.37-0.85 adjustable
Application of Foam Board: building template, furniture board, decoration board, advertisement board, wall panels, roof, car and boat board etc.
After-sales Service Provided: Engineers available to serve overseas
Packing Details: Wood package and PE film covered 2 containers.

No.

Equipment of the production line

Quantity

1
SJSZ-80/156 twin screw extruder
1 set
2
ZF-450 spring type autoloader
1 set
3
Die head and mould
1 set
4
Vacuum calibration cooling units
1 set
5
Air cooling stacker
1 set
6
Haul off machine(with double side trimming device)
1 set
7
Transverse cutting machine
1 set
8
Stacker
1 set

Application of PVC WPC foam board extruding machine

1. Construction industry:
Building formwork board, outdoor board, indoor decoration board, residential house board, office board, separation wall of public building, commercial decoration frame, board used in dust-free room, etc.
2. Furniture and Household decoration:
Bathroom cabinet board, kitchen cabinet board, furniture board, home decoration board, various household shelves, etc.
3. Advertisement industry:
Screen printing, computer engraving, advertisement board, exhibition plate, logo plate, etc.
4. Transportation industry:
Ship, plane, bus, and train, floor covering, core layer, indoors decoration plate, etc.
5. Industrial application:
Suitable for rot-proof project in chemical industry, thermal forming, refrigeration warehouse, etc.
6. Other applications:
Construction formwork, sports apparatus, aquaculture material, seashore wet-proof facility, water-resistant material, arts material and all sorts of light separation plate, etc.
Certifications
Detailed Images

Machine Parts

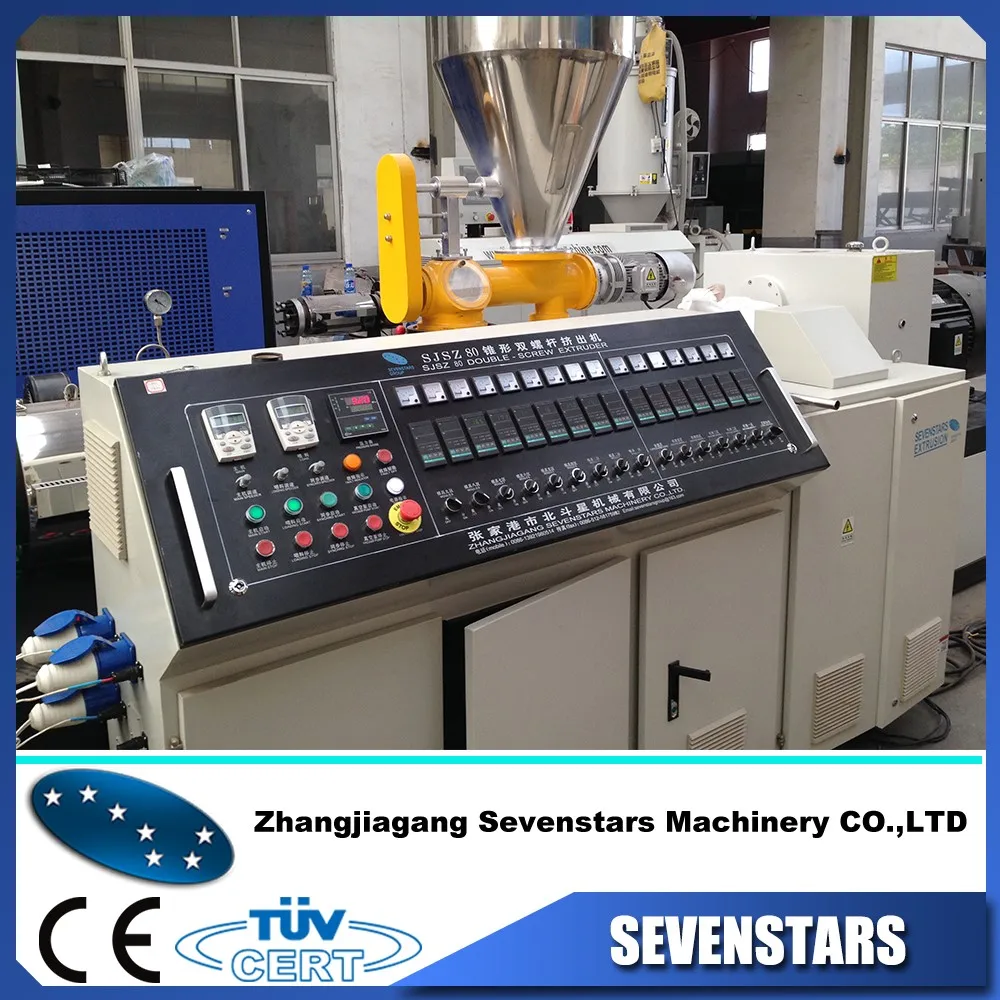

Name: SJSZ80/156 extruder

Frequency inverter: ABB

Temperature Controller: RKC Japan

AC contactor: Siemens

Motor power: 75KW (AC motor)

Screw Diameter: 80/156mm

Screw Length: 1800mm

Screw rotation speed: 0-37r/min

Machine Parts

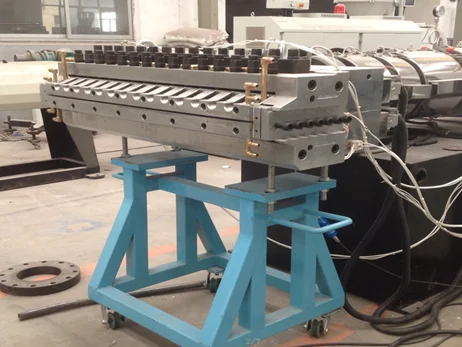

Name: Die head and calibrating Moulds
1. Mould is heated by heating bar
2. Lip of mould is heated by heat conducting oil
3. Die firmware use 12.9 grade high strength screw, adjusting bolt and mould are made of 40Gr.
4. Material of mold: 5CrNiMo
5. Material of forming mould: 5CrNiMo, chrome plated and polished
6. Thickness and width of board: 3-20mm and 1220mm


Machine Parts

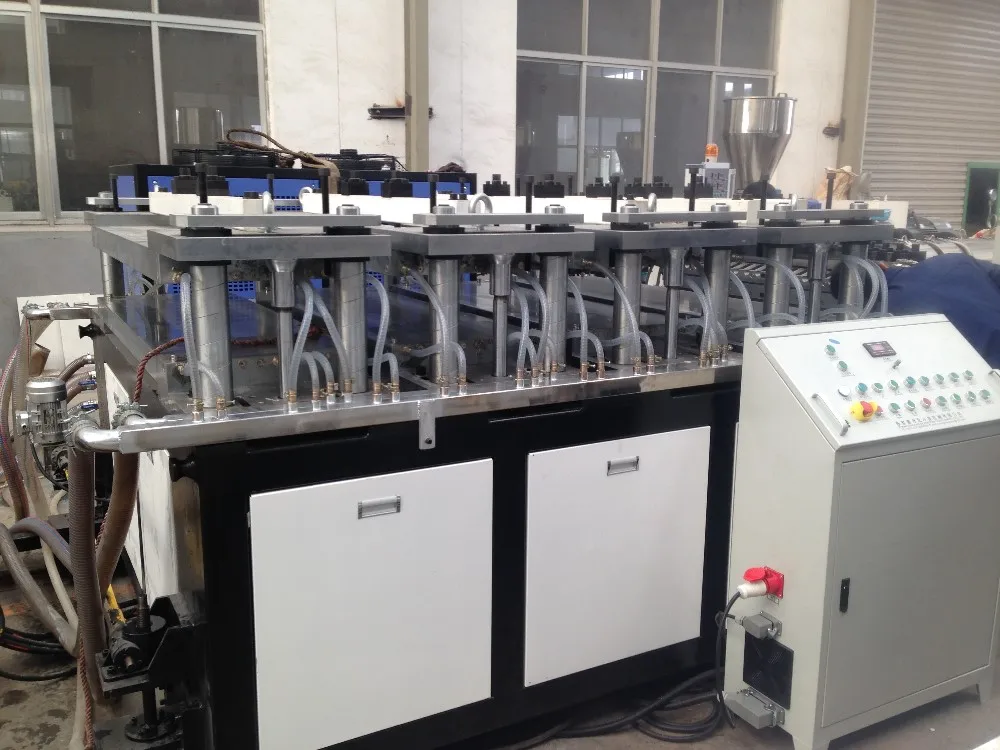

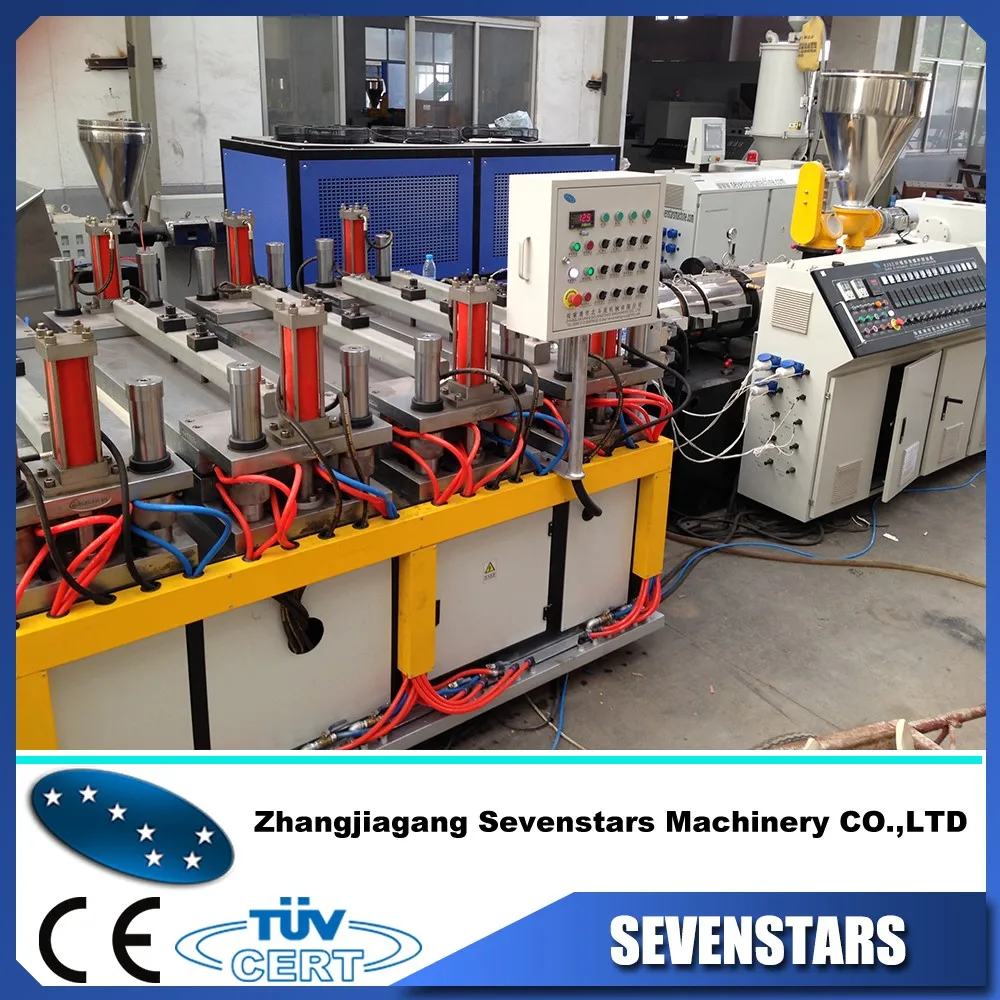

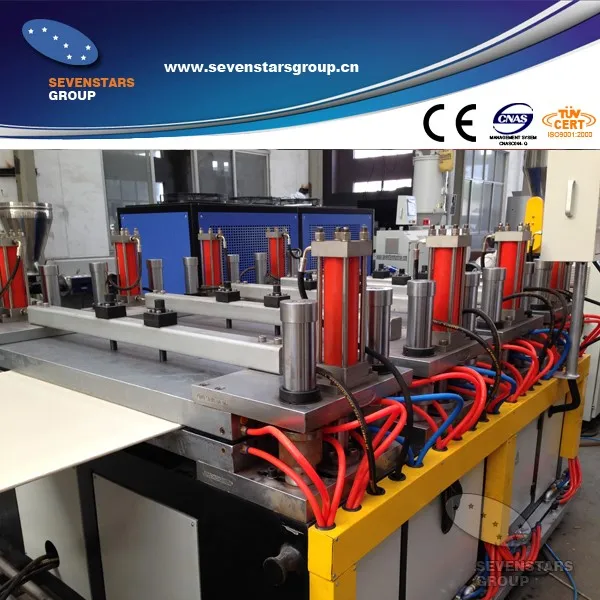

Name: Vacuum Calibrator And Cooling Table
1.Calibration mould quantity: 4paris

2.Calibration mould open and close: hydraulic drive

3.Lift up and down for whole tale: Electric Motor drive

4.Cooling medium: Cold Water

5.Material of mold: 5CrNiMo

6.Cooling table size for each block: 1500*600*80mm

Machine parts

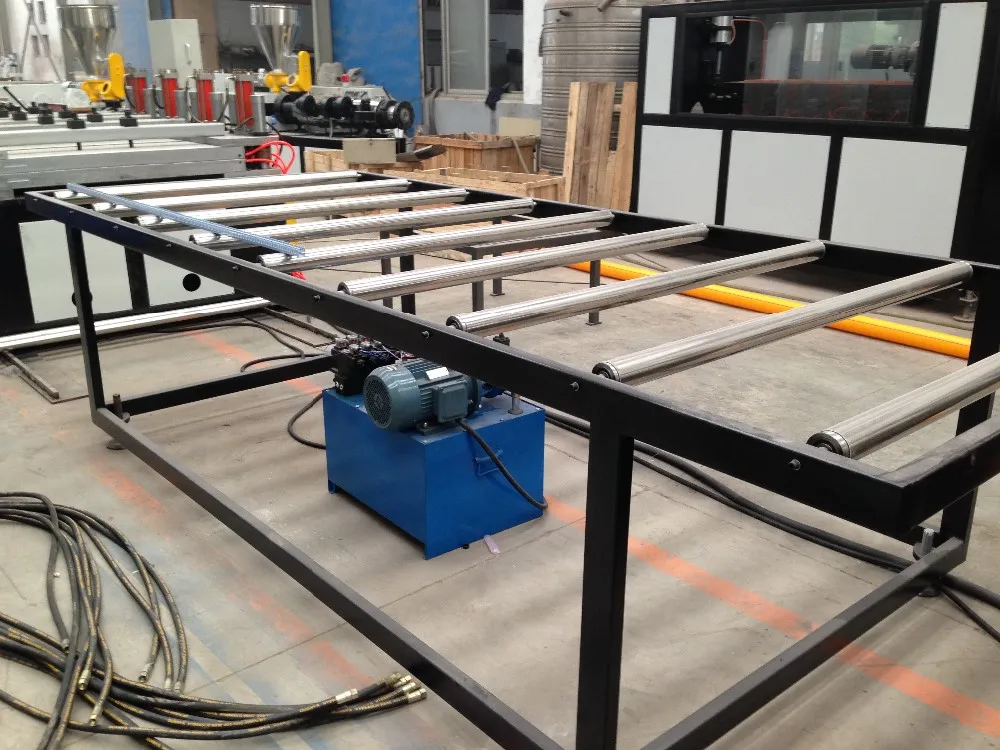

Name: Air cooling stacker

1.Length: 4000mm

2.Bracket roller material: Stainless steel pipe

3.Cooling method: Air cooling

Machine parts

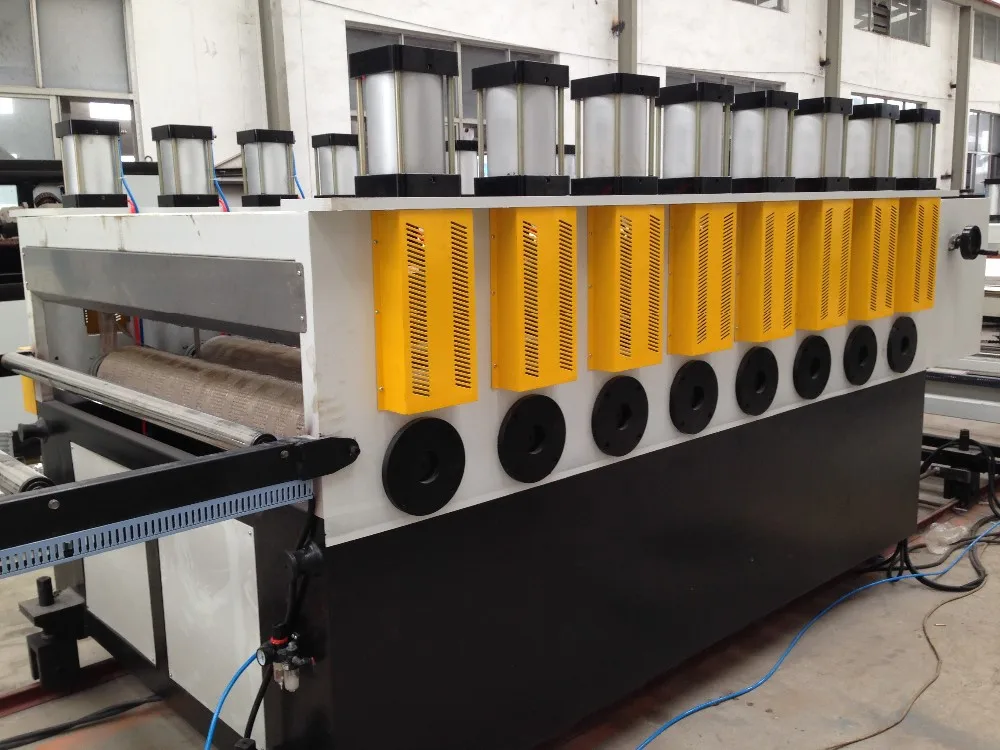

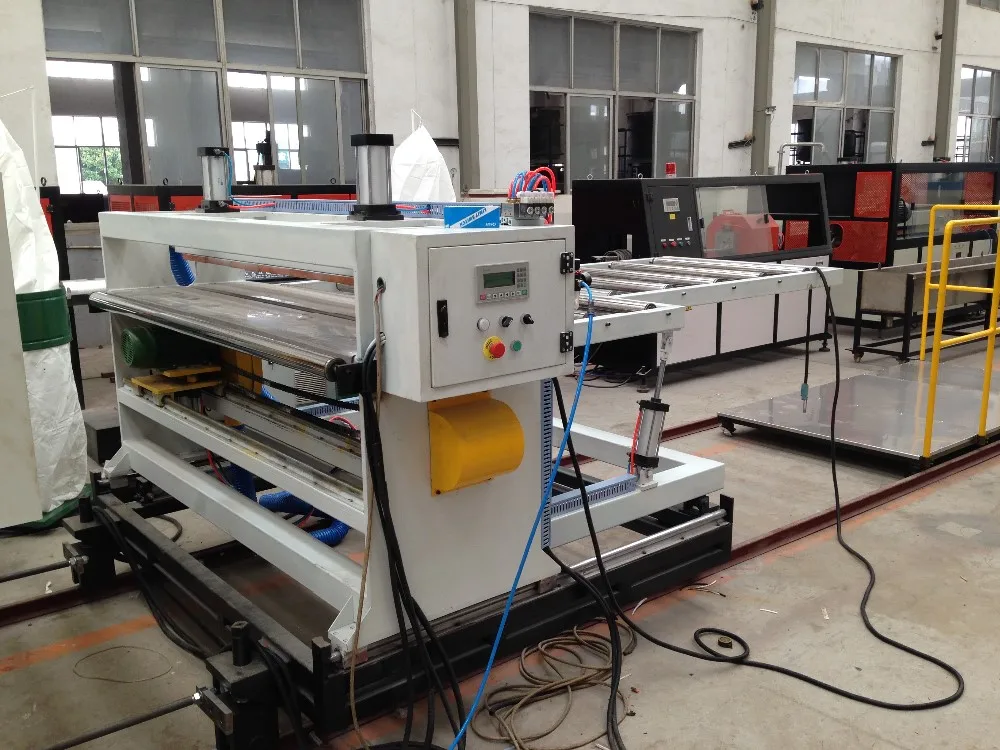

Name: Transverse Cutting Machine

1.Haul roller quantity: 8 pairs

2.Material of roller: Rubber

3.Roller lift up and down method: Cylinder pneumatic drive

3.Speed adjusting mode: Frequency conversion regulating

4.Motor powder: 3 KW×2

Machine parts

Name: Ransverse Cutting Machine

1. Motor power: 4kw

2. Material of Saw blade: Alloy steel

3. Press Clamping Mode: Cylinder Pneumatically press

4. Control device: Single chip

5. Cutting Dust collection: Air blower collection

Machine parts

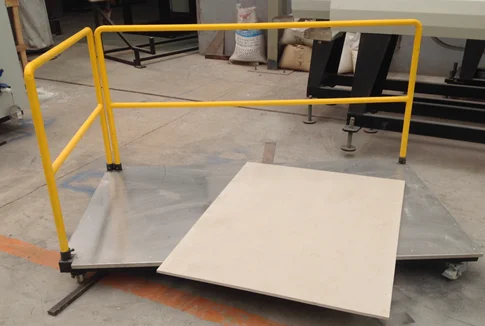

Name: Stacker

1. Material: Stainless steel

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

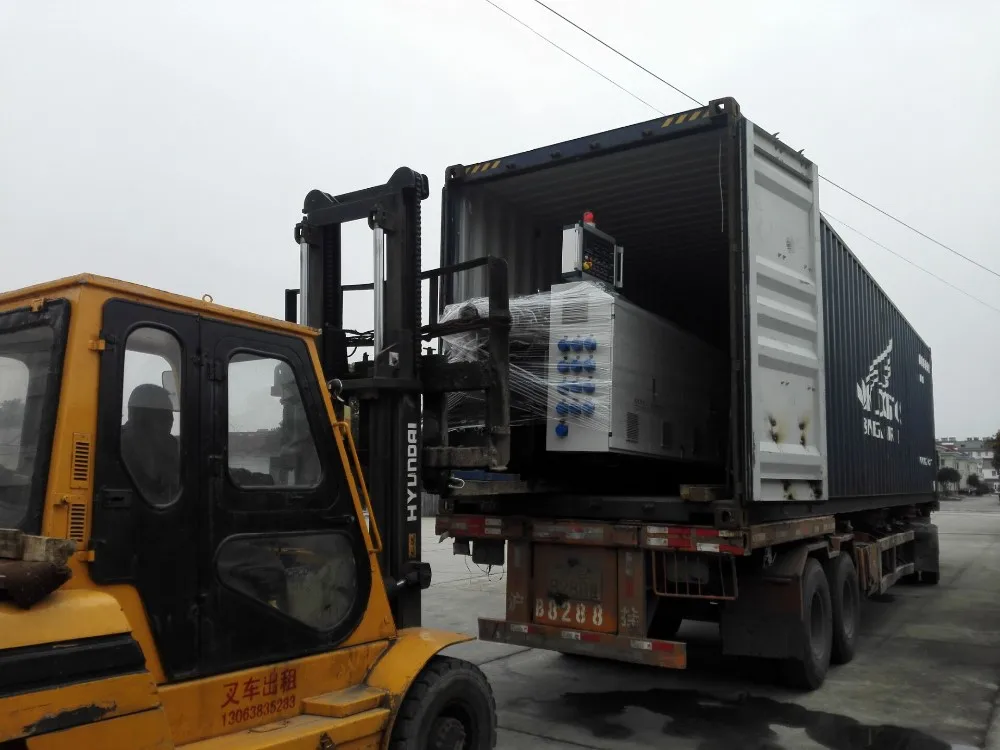

Packing & Delivery
Packaging
Size
total around 100 cube
Weight
28 T



Packaging Details
we will use pe film for packing or pack it according to customers special request.
