Hot sale plastic pp sheet extrusion machine line

FOB Reference Price:Get Latest Price
$100,000.00 - $160,000.00 / Set | 1 Set/Sets (Min. Order)
Model Number:
SJ120/30
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets) Less
Samples:
$10.00 /Set | 1 Set (Min. Order) | Buy Samples
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Warranty:
1 year
After-sales Service Provided:
Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Online support, Engineers available to service machinery overseas
Place of Origin:
Jiangsu, China
Brand Name:
Sevenstars
Voltage:
380V 50HZ 3Phase(Customizable)
Application:
Sheet
Weight:
8-20T
Certification:
CE ISO
Screw Design:
Single-screw
Plastic Processed:
PP/PC
Dimension(L*W*H):
30m*3m*2.5m
Applicable Industries:
Building Material Shops, Manufacturing Plant
Key Selling Points:
Competitive Price
Output (kg/h):
150 - 700 kg/h
Screw diameter (mm):
200 mm
Usage of PC sheet:
solar panel
Usage of PP sheet:
packing box
Automatic Grade:
Automatic
Power(W):
185kw
Supply Ability
Supply Ability:
5 Set/Sets per Year pp sheet plastic extruder/pp sheet plastic extruder/pp sheet pro
Packaging & Delivery
Packaging Details
sea worthy packing for pp sheet plastic extruder/pp sheet plastic extruder/pp sheet production line
Port
shanghai, ningbo,tianjin

Hot sale plastic pp sheet extrusion machine  line

Main Photo


Product Information

 Overview

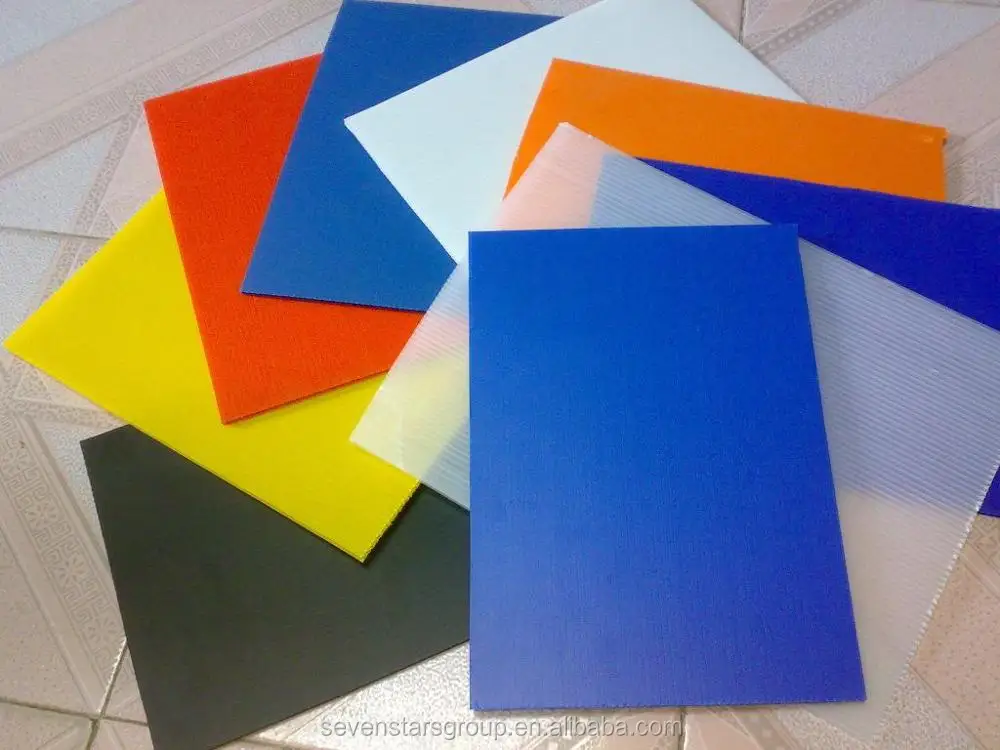

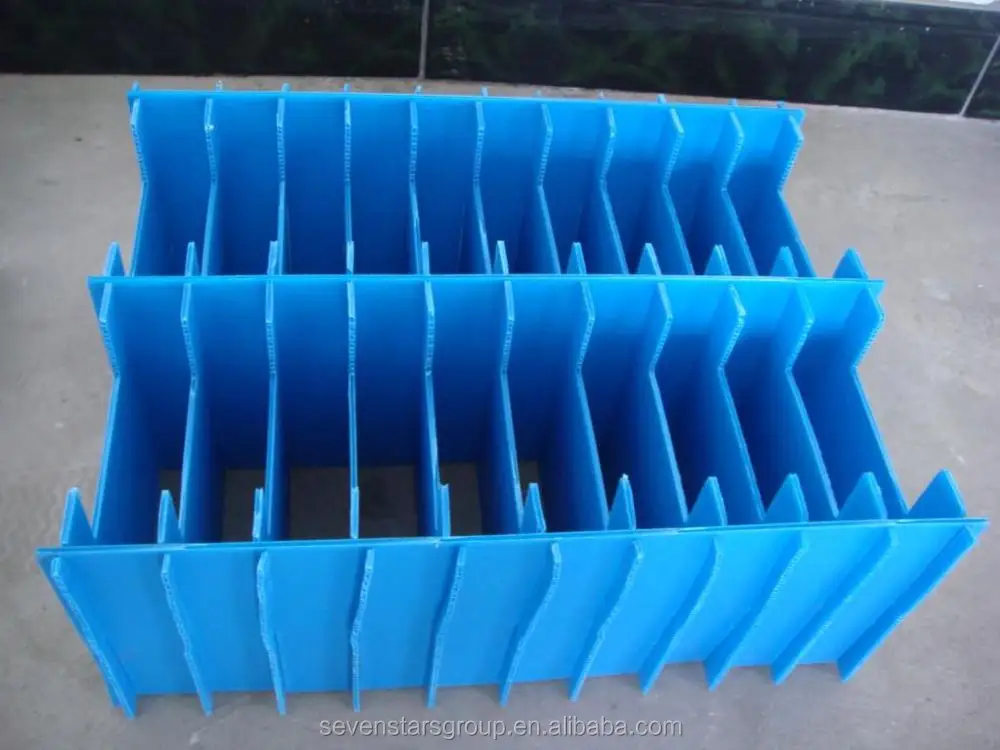

The  hollow sheet making machine is applicable to produce PC,PP,PE hollow profile board. The products is used widely for building, decorating, advertisement laying, road noise isolation and packing. PP hollow profile board can instead of carton which have feature like light weight, high strengthen, moisture-proof, antisepsis.





Features of pp sheet plastic extruder/pp sheet plastic extruder/pp sheet production line



1.        The vacuum calibrator featured with wear-resistance, dirty free and the lifting, falling and leveling for the forming plates is much easier to be controlled.

2.        High speed screw, low energy consumption with high rotation speed to match gear pump and stable pressure; output capacity is 25% higher than other brand extrusion lines. because of special design of forming plates.



3.        Special designed cooling system for all section of forming plates, and unique designed vacuum system for each section of forming plate.

4.        Special designed temperature control oven with cross heat shrink forming, which is much easier to be controlled than other brand extrusion lines.

5.        The softness of pull rolls could be customized on request to extend its stretch.

6.        The air capacity of hollow sheet and low pressure could be adjusted and controlled slightly, which is easily to be controlled than any other brand extrusion lines.

7.        Unique T-Die made by JC Times is specially designed for PP hollow sheet. The thickness of hollow sheet could be from 2mm to 10 mm with twin-wall. The ribbed between walls could be rectangular and diagonal shape.

8.        Anti-UV co-extrusion layer could be one sided or two sided, outer surfaces could be sandy or glossy according to configuration requirement.

High percentage of recycled flakes could be mixed with the virgin materials.





Part parameter of pp sheet plastic extruder/pp sheet plastic extruder/pp sheet production line



Extruder model

Φ100

Φ120

Product width

1300mm

2100mm

Product thickness

2-10mm

2-10mm

Motor power

110kw

132kw

Papacity

250-300kg/h

400-450kg/h

Detail Show


Company Profile



 Zhangjiagang Sevenstars Machinery Co.,Ltd. was founded in 2006. it is an enterprise specialized in producing plastic machinery.it lies to the south of the middle and lower reches of Yangtze River.It is located in the National civilization and hygienic city-zhangjiagang , Surrounded by the economic belt of Suzhou,Wuxi,Changzhou,Nanjing and Shanghai.Both land and river transports are rather convenient.We sell our products to Europe middle,Africa and Asia,etc country and region.Our products enjoy a high reputation home and abroad.
