PP PE film ABS EPS waste plastic granules extruding line

FOB Reference Price:Get Latest Price
$10,000.00 - $65,000.00 / Set | 1 Set/Sets (Min. Order)
Model Number:
waste plastic granules extruding line
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Warranty:
1 year
After-sales Service Provided:
Field maintenance and repair service, Video technical support, Engineers available to service machinery overseas
Place of Origin:
Jiangsu, China
Brand Name:
SEVENSTARS
Voltage:
380V 50HZ 3P
Weight:
5-10T
Certification:
CE/ISO
Screw Design:
Single
Type:
Recycling Granulator, waste plastic granules extruding line
Dimension(L*W*H):
according to the output
cutting type:
water-ring for waste plastic granules extruding line
controler:
PLC for waste plastic granules extruding line
supplier area:
china
feeder way:
side force feeder
Raw material:
waste plastic film
Keywords:
waste plastic granules extruding line
Function:
Plastic Rcycling
Application:
Granules Production
Material:
PP/PE
Capacity:
100-800kg/hour
Power:
depend on the capacity
Supply Ability
Supply Ability:
5 Set/Sets per Month
Packaging & Delivery
Packaging Details
sea worthy packing for waste plastic granules extruding line
Port
Shanghai for waste plastic granules extruding line
Product Description

Product Application

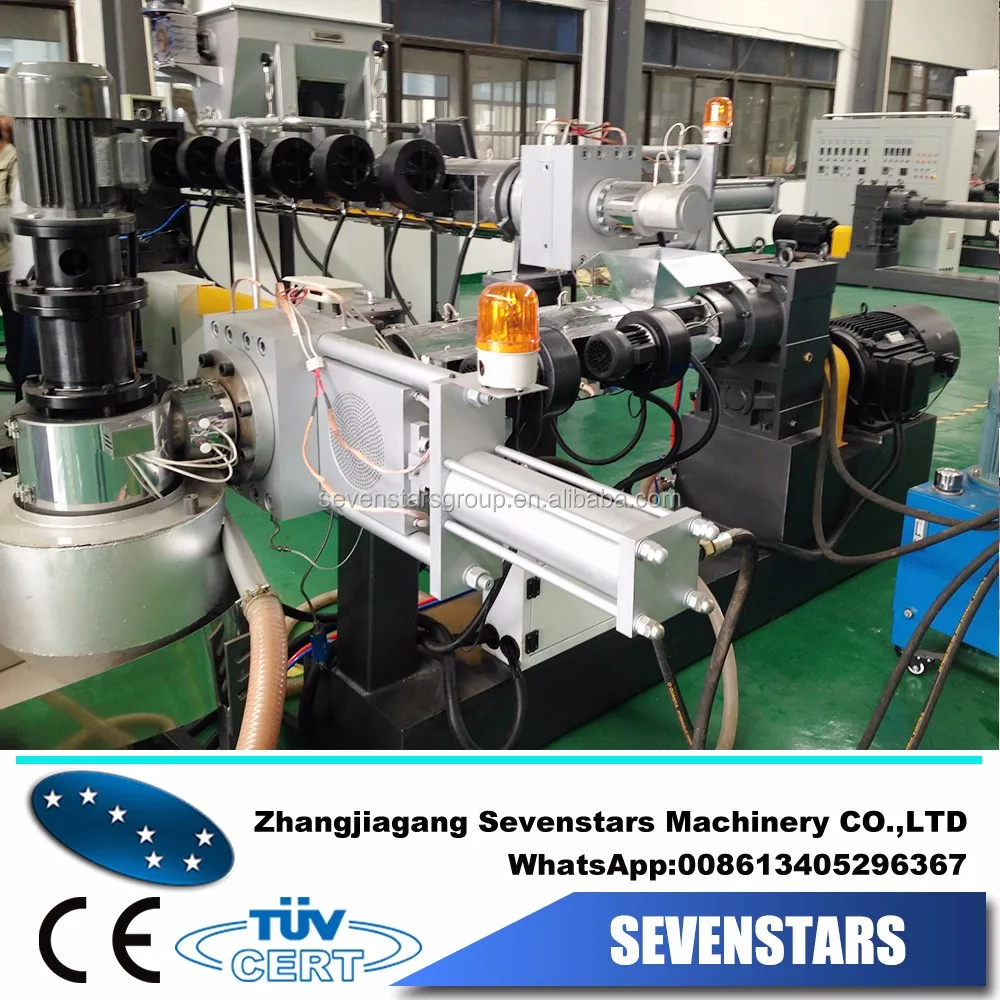

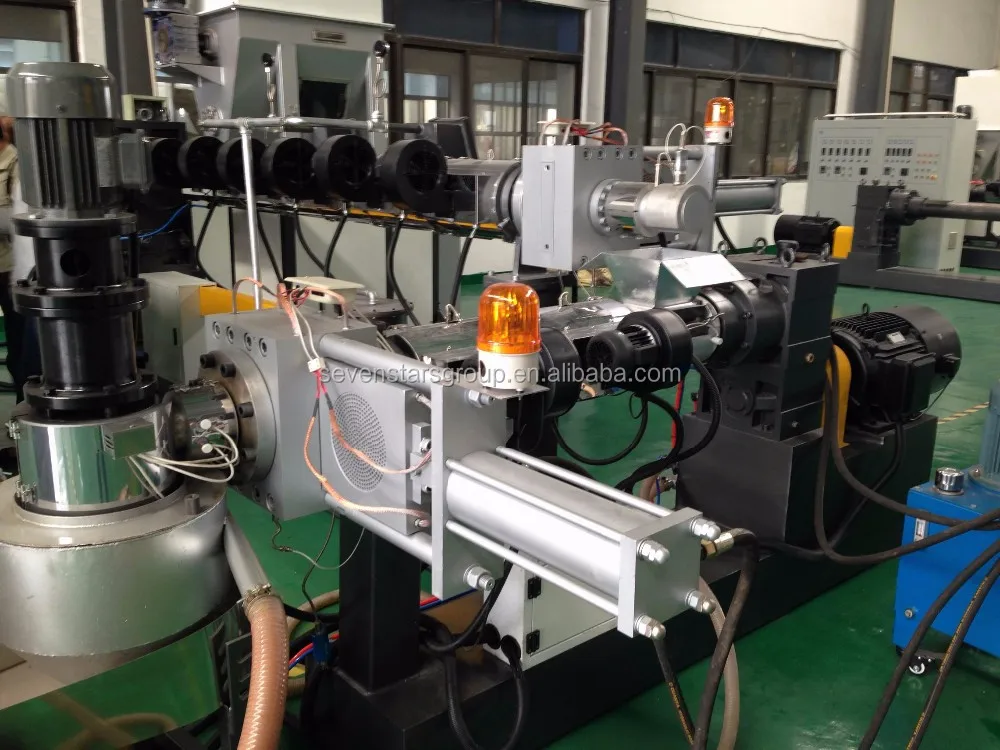

waste plastic granules extruding line is special equipment for the PE PP film recycling granulating, it equipped with comacting machine which cound pre- compact the film into smaller granules, then easily feed into screw barrel of extruder, its efficiency is high and can improve production capacity and save labour cost.
It has two vacuum exhuasting mouth on extruder barrel which can fully vent the moisture in the material and hence the final granule quality will be very perfect.
At the end of screw barrel, it equipped with double post fast speed hydraulic non -stop screen changer which can effetively filt out the dirty in the plastic melt.
The pelletizing adopts water flush pelletizing which is easier to operate, and the shape and appearance of granule is good.


Model of PE/PP plastic pelletizing line
SJ85
SJ100
SJ130
SJ160
extruder screw diameter
85
100
130
160
main motor of extruder
55
90
132
160
main motor of compacting machine
37
55
75
90
production capacity
100-150
200-300
300-400
500-600

Main Features

1. Raw material: used PP PE plastic
2. Final product: plastic granules
3. Output:100-800kg/h
4. Cutting type:water ring

Certifications
Detailed Images

Machine Parts

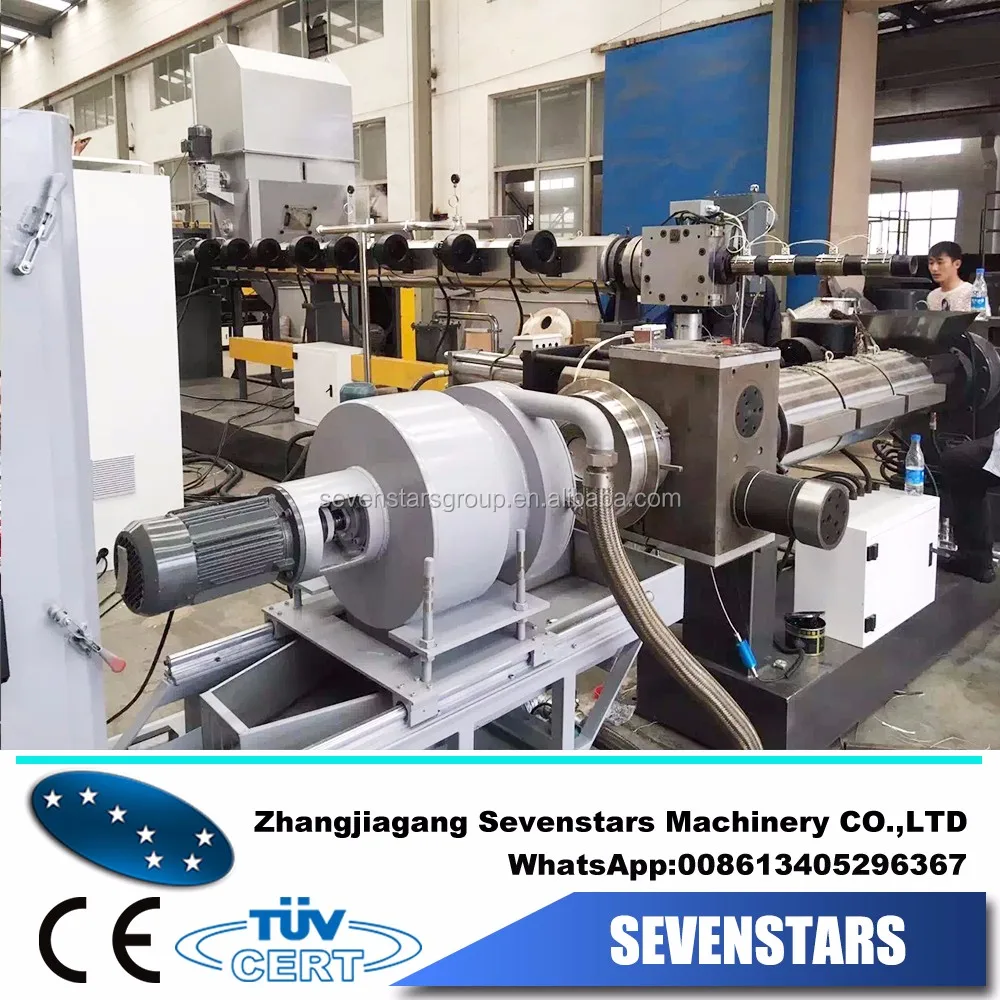

Name: Main extruder

Screw type: Single screw

Vacuum: Double hole degassing


Main Features

Name: Screen changer filter
The filter shape:  Round and square
Hydraulic station: 2.2kw, 25MPA

Machine Parts

Name: water ring cutter
Cutter motor: 2.2kw
Speed: by Invertor

Main Features

Name: Dryer
Motor: 7.5kw
Speed: 1440rpm

Main Features

Name: Silo

Volume: 1.5m3

Material: SUS304

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery
Packaging
Size
40ft container
Weight
9T



Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
