SevenStars Compactor film plastic granulator machine/pelletizing line

FOB Reference Price:Get Latest Price
$20,000.00 - $70,000.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
BDX-SJ
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 60 Negotiable
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Type:
Recycling Granulator
Capacity:
200-500kg/h
Place of Origin:
Jiangsu, China (Mainland)
Brand Name:
Sevenstars
Material:
PE PP
Screw Design:
Single
Voltage:
380V50HZ or optional
Power:
depend on capacity
Dimension(L*W*H):
As model
Weight:
7000kg
Certification:
ISO CE
Warranty:
1 Year
Temperature controller:
Japan "RKC"
the material of pelletizing blade:
SKD-11(D2)
manufacture experience:
more than 13 years
material processed:
Waste pp and pe film
Main motor:
Siemens
frequency inverter:
ABB
Contactor:
Schneider
Color:
customized
delivery time:
30days
processing type:
According to the material
After-sales Service Provided:
Engineers available to service machinery overseas
Supply Ability
Supply Ability:
15 Set/Sets per Quarter
Packaging & Delivery
Packaging Details
sea worthy packing for recycle plastic granules making machine price
Port
shanghai
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 60 To be negotiated
Product Description

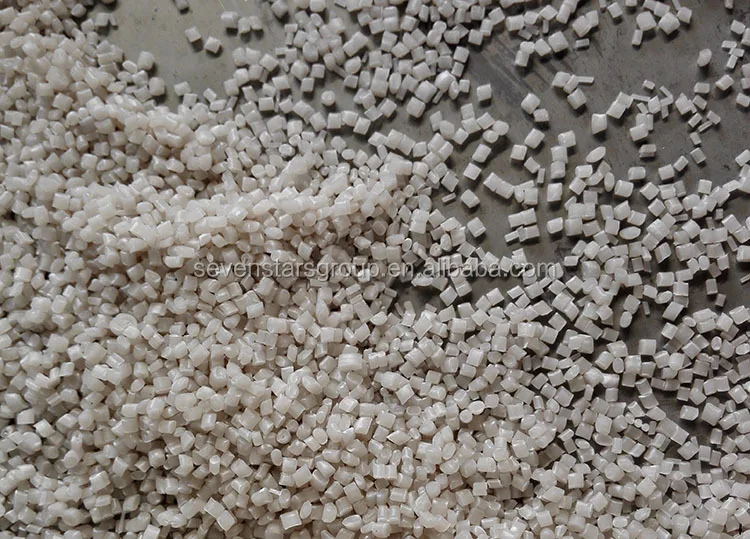

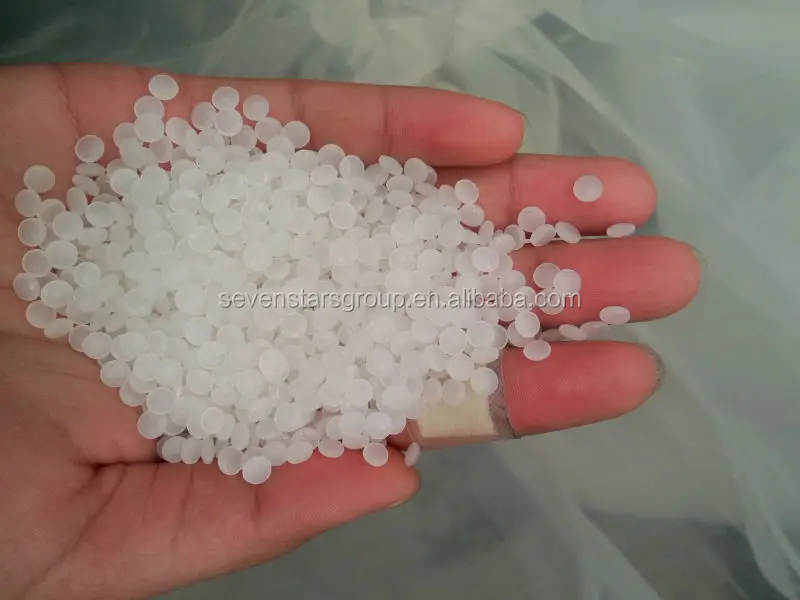

The pellets


Specifications

PE/PP Film Double Stage Plastic Pellets Price
1.Capacity:200kg/h-500kg/h
2.Type:water-ring and stand pelletizer
3.ISO,CE


pp pe film pelletizing line/ Plastic film granulator
Usage:

    This water-cooling single screw plastic pellet making machine is double stage plastic regenerative pelletizer, which is suitable for many kinds plastic waste materials recycling and making pellet, such as PP, HDPE, LDPE, LLDPE Film and clean woven/nonwoven bag materials, etc.
    The film can be pressed in compressor and then be pelleted.And also has very developed design, makes sure this machine has a long working life and economical efficiency in using.


Characteristic:

1. Screw and barrel are made of 38CrMoAlA, inlet mouth treated with special alloy: very strong and long life.
2. Easy operation: it has automatic constant temperature control and stable performance. After adjusting well, 1 or 2 workers are enough to run this machine, to feed the materials and change pellet receiver.
3. Low cost in using after redesign: now this kind machine is more economic in electric power source and also water. In the long working life of this machine, it can save many sources in energy!
4. High output, long operating life and lower noise: it's the ideal waste plastics regenerative pelletizer machine for nowadays.

Main parameter

Main parameter SJ series Single-stage/Double-stage PEPP plastic film pelletizing line/granulating machine:


SJ series single screw pe pp plastic film granulator machine
Model
SJ-65
SJ-80
SJ-100
SJ-120
SJ-150
SJ-200
Screw Dia.
65
80
100
120
150
200
L/D
28-30
28-30
28-30
28-30
28-30
28-30
Capacity
60-80kg/h
80-100kg/h
150kg/h
300kg/h
400kg/h
500kg/h
SJ series double-stage pe pp plasic film granulator machine
Model
SJ-100/100
SJ-120/120
SJ-150/150
SJ-200/200
Screw Dia.
100
120
150
200
L/D
28-30
10-15
28-30
10-15
28-30
10-15
28-30
10-15
Capacity
120-180kg/h
220-300kg/h
300-400kg/h
500-600kg/h

Main parameter ZL series Single-stage/Double-stage PEPP film Compactor-granulating line/granules making machine

SJ series single stage pe pp film compactor-granulator machine(with agglomerator)
Model
ZL-85
ZL-100
ZL-130
ZL-160
ZL-180
Screw Dia. (mm)
85
100
130
160
180
L/D Ratio
25-42
25-42
25-33
25-33
25-33
Output (kg/hr)
120-180
250-350
400-500
550-700
800-1000
SJ series double- stage pe pp film compactor-granulator machine(with agglomerator)
Model
ZL-85/85
ZL-100/100
ZL-130/130
ZL-160/160
ZL-180/180
Screw Dia. (mm)
85
100
130
160
180
L/D Ratio
25-42
25-42
25-33
25-33
25-33
Output (kg/hr)
120-180
250-350
250-350
250-350
250-350

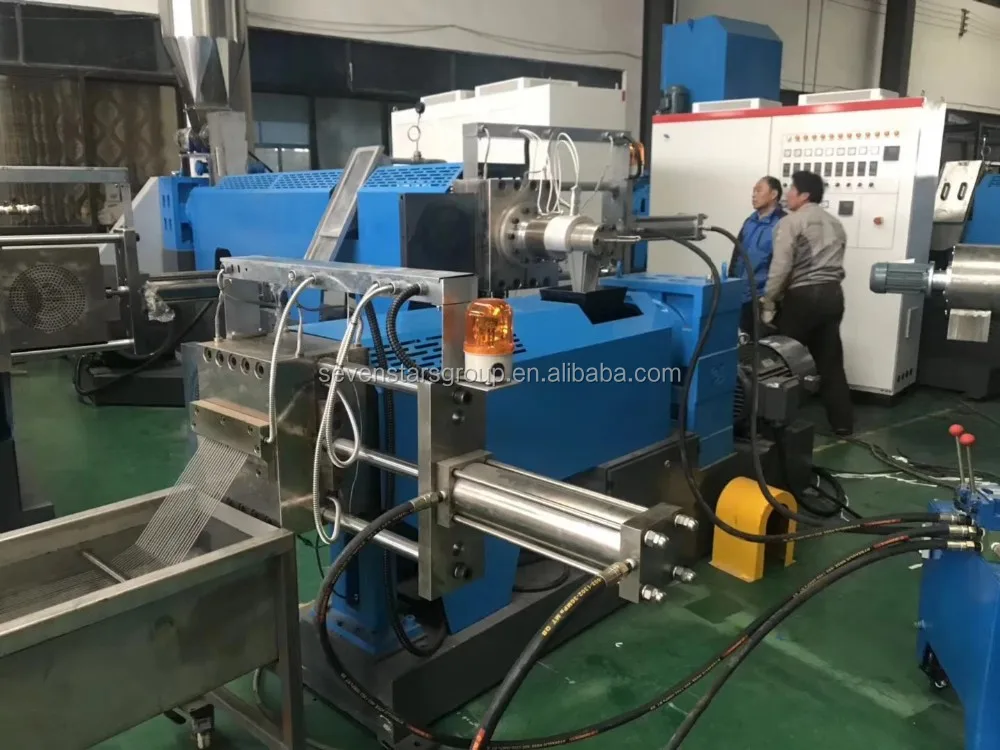

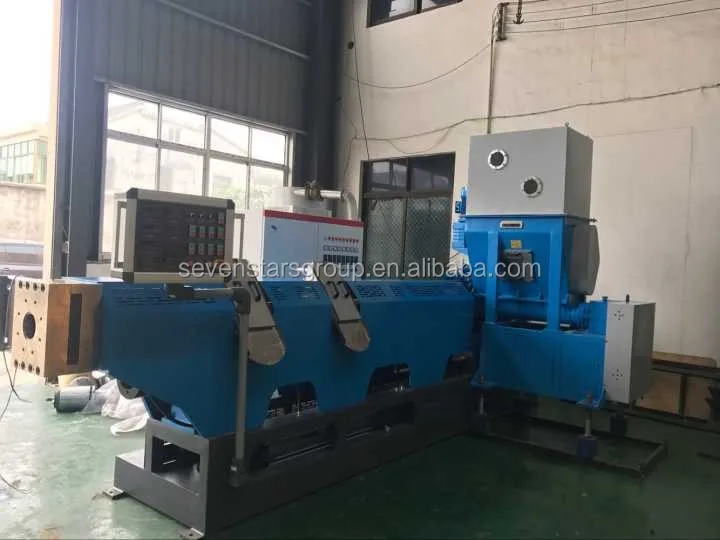

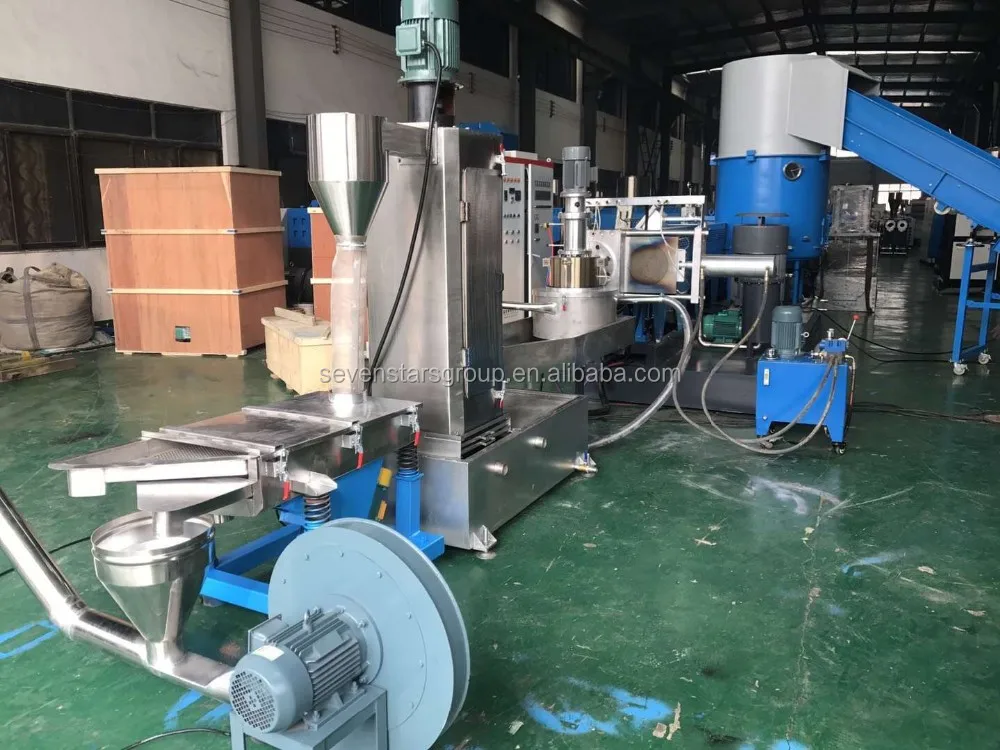

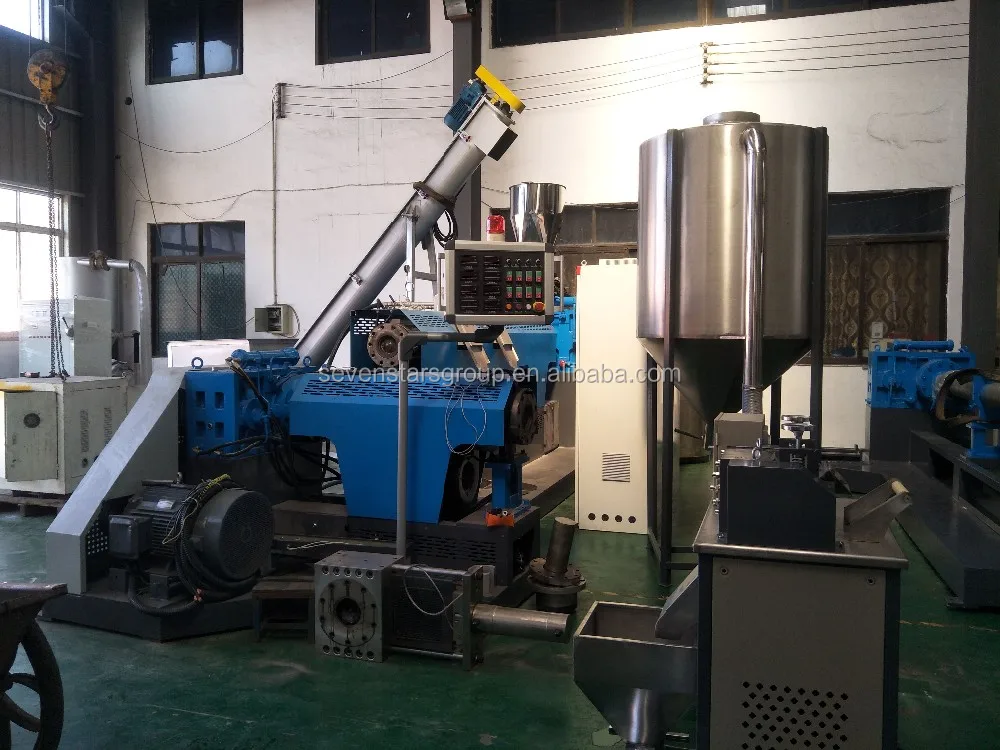

Detailed Images

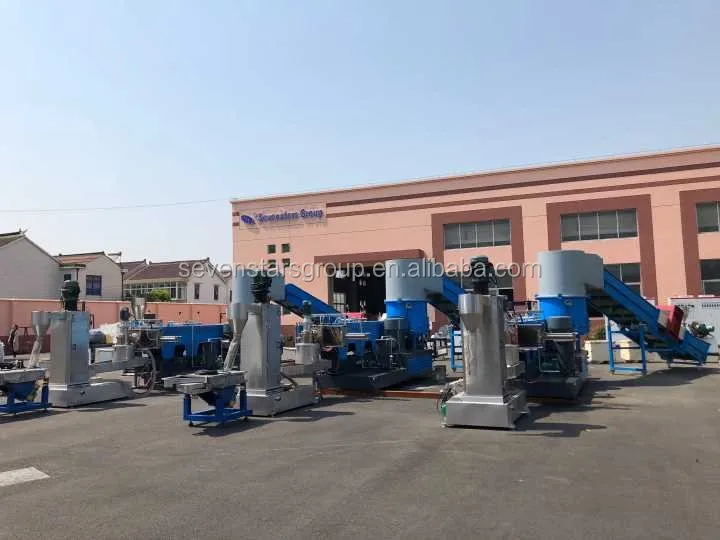

Our Factory
Contact us
