plastic pelletizer machine / plastic film squeezer granulating machine / recycling Squeezing equipment

FOB Reference Price:Get Latest Price
$20,000.00 - $32,000.00 / Set | 1 Set/Sets (Min. Order)
Model Number:
BDX500
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Warranty:
2 years
After-sales Service Provided:
Field installation, commissioning and training, Engineers available to service machinery overseas
Place of Origin:
Jiangsu, China
Brand Name:
SEVENSTARS
Voltage:
380v 50hz 3phase or customized
Certification:
ISO9001 and CE
Application:
Plastic Recycling
Automatic Grade:
Automatic
Dimension(L*W*H):
4000*1800*3800mm
Material of Screw and barrel:
38CrMoALA with Nitrogen hardness treatment
Barrel thickness:
35mm
Nitrided Hardness:
HV880-1050
Name:
Plastic film squeezing machine for recycling
Final Moisture of PP/PE scraps:
≤2-3%
Electric Control ways:
PLC Automatic control
Electric relay and contactor brand:
Schneider
Gearbox brand:
Guomao brand
Pelletizing Speed control ways:
By inverter with ABB or danfoss brand
Production Capacity:
500KG
Power(W):
90KW
Weight:
2500KG
Supply Ability
Supply Ability:
100 Set/Sets per Year
Packaging & Delivery
Packaging Details
sea worthy packing plastic film squeezer machine
Port
Shanghai plastic film squeezer machine for recycling

 plastic pelletizer machine / plastic film squeezer granulating machine / Squeezing equipment

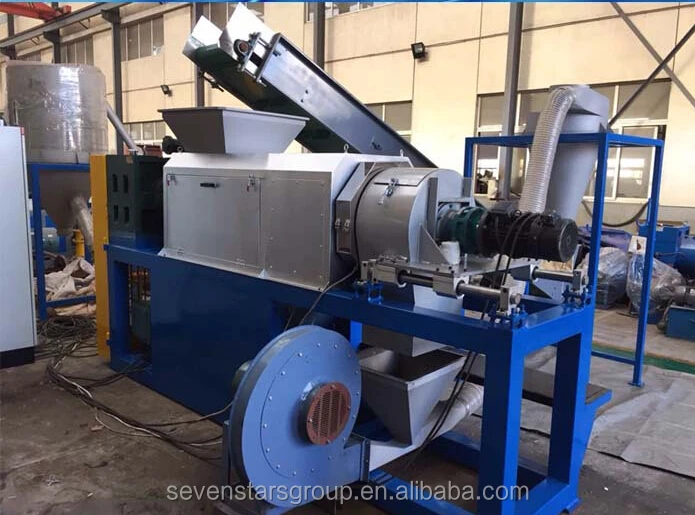

This Wet film scrap squeezer dryer plastic granulator machine is used after the plastic film/plastic agricultural film/PP woven bags/Space bag/tons bags/thin waste plastics plastic sheets washed,using the squeeze dewatering principle,squeeze the water from the plastic by rotating screw.The water will flow out from the bottom,the plastic will get hot by high intensity extrusion friction,and will plasticizing mildly after the mould heating.Finally the blade will cut the granules from the mould.



Advantage of  squeezer dryer plastic machine:

1. Low power consumption. Main motor power between 90kw, no need to connection drying pipe system. Compare transitional horizontal dewatering machine+drying pipe system, can save power 40-50%

2. Small land occupied

3. Low rotation speed, almost no noise

4. Dewatering function is better, final products humidity less then 3%

5. After squeeze dry granulating machine, the material can put into granulator driectly, do not need the forced feeding machine.

6. Mechanical squeeze dewatering, compared with the original hot air drying, do not need use dewatering machine, drying system and the agglomerator machine, it can save the energy greatly.



If you are interested,please feel free to contact with me! i will prepare you the offer soon!



More pictures for your reference as below:

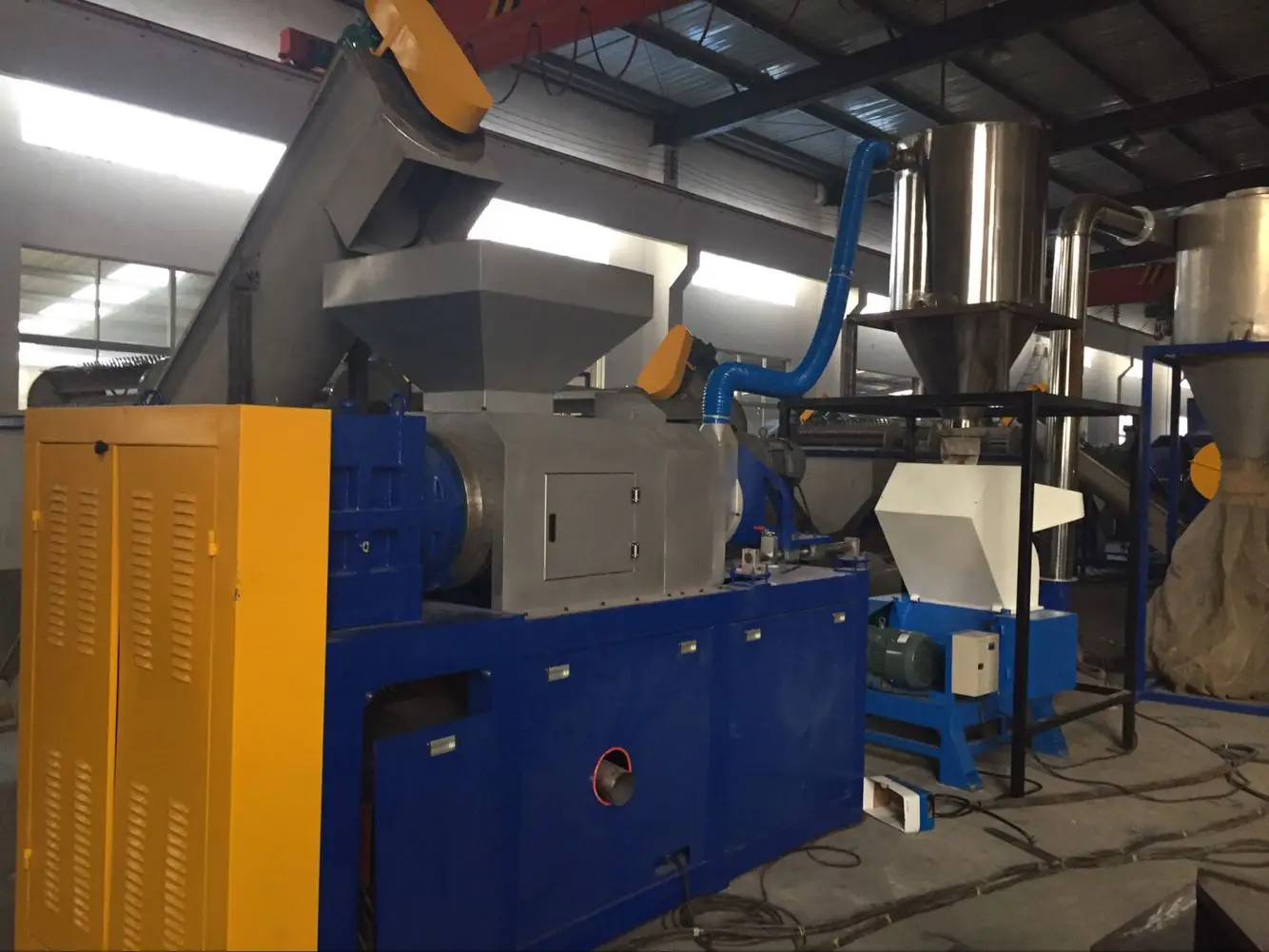

Squeezer machine (3).png

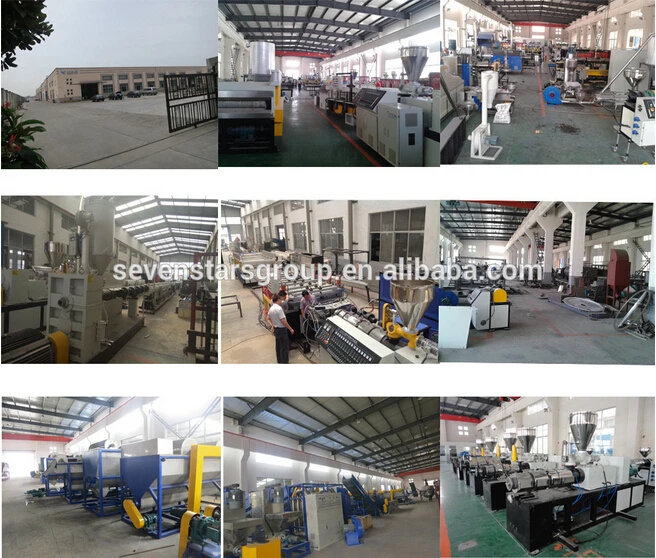

Our workshop:
