Best Price of 16-800mm twin screw PVC pipe extrusion making machine plant

  • 1 - 1 Sets
  • >=2 Sets
Model Number:
SJSZ series
Max Pipe Diameter:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)


Graphic customization (Min. Order: 1 Sets) Less
$10.00 /Set | 1 Set (Min. Order) | Buy Samples
Report Suspicious Activity
Quick Details
1 year
Pipe Production Line, Pipe Production Line
Production Capacity:
Applicable Industries:
Manufacturing Plant
Pipe Material:
water electrical
Place of Origin:
Brand Name:
Sevenstars pvc pipe extrusion
depends on model
After-sales Service Provided:
Online support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support
Key Selling Points:
High Productivity
Material of screw:
38CrMoAlA nitriding treatment
The related machines:
Mixer, crusher, air compressor,chiller,printer
The inverter:
ABB brand for pvc pipe extrusion
Gear box:
Guo mao brand(China)
Material of vacuum forming tank:
Stainless steel 304 for pvc pipe extrusion
Temperature control meter:
RKC or OMRON brand
Cooling for barrel:
Air flow cooling
Element of Electric:
Seimens brand
Pressure class:
According to customer's need
Supply Ability
Supply Ability:
3 Set/Sets per Month for pvc pipe extrusion

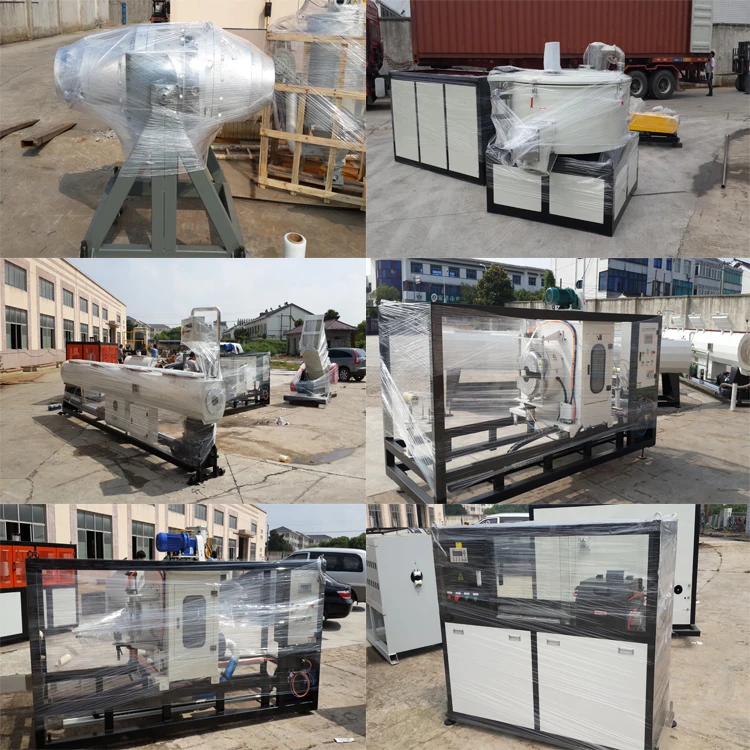

Packaging & Delivery
Packaging Details
standard package (seaworthy packing) for pvc pipe extrusion
Shanghai,Tianjin,Ningbo for pvc pipe extrusion


 PVC pipe extrusion

General description


The series extruders with appropriate die-mould and auxiliary machine can directly convert thermoplastic especial PVC powder into pipe,plate sheet,film and profile,and also provide function of modifying and pelleting.The extruders are derived by A.C motor with a thruster to steepless regulate.It is also equipped with the over-load protection and stoppage alarming system .The screw's core and the outside of barrel is cooled by circulation of oil,includes vacuum venting and forced feeding.

Diameter 16mm-800mm series PVC pipe extrusion production line is mainly used in the manufacture of plastic PVC pipes with various diameters and wall thickness used in the industried such as agriculture and constructional plumbing, cable laying etc.


PVC pipe extrusion line Include:


Spring feeder→Conical twin-screw extruder→mould→vacuum calibration tank→ haul off→cutter→ stake etc.


The extruder and haul off adopt imported AC frequency control device, vacuum pump and haul off motors adopt high-quality products. The haul off methods are two-claw, three -claw, four-claw, and six-claw etc. You may choose saw blade cutting type or planetary cutting type. It is additionlly attached with length counter and intensifying device. This line is of reliable performance and high production effeciency.

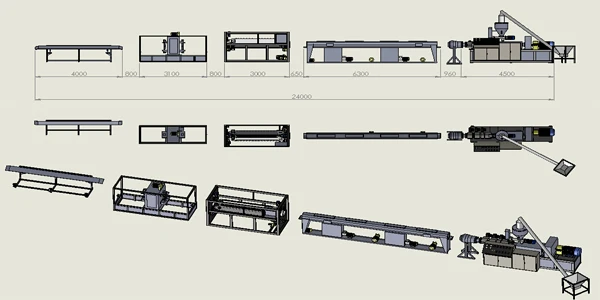

Production Flow

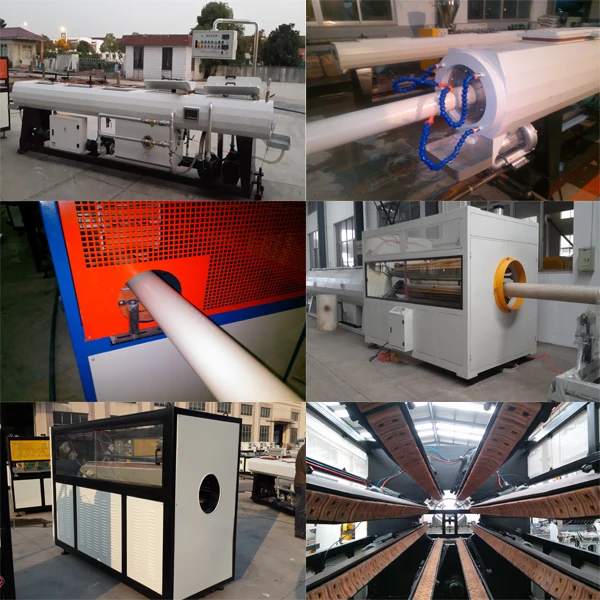

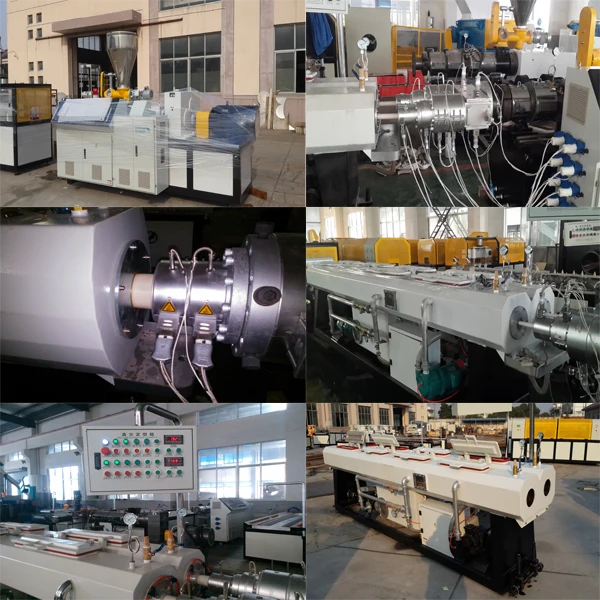

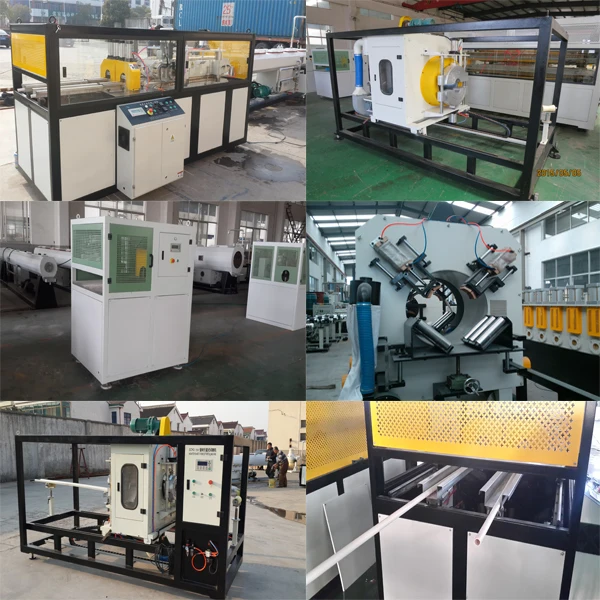

Detailed Image



Main Techinacal Parameter:


Diameter of screw(mm)45/9051/10555/11365/13280/15692/188
Number of screw(mm)222222
Direction of screwsScrew rotation direction/////
Screw rotation speed(rpm)1-451-45401-351-371-33
Effective length of screw(mm)98510701200144018002500
Power of Main engine(kw)1518.522/30375590
Barrel heating power(kw)121818243686.8
Production capacity(kg/h)12080-150150-180250-300320-400600-800
Center height(mm)100010001000100010001200
Net weight(kg)280032003500400050008000


Finished Products


Product Uses






Our service

1.Upon request Supplier will dispatch engineers to install the machines and do commissioning together with customer’s workers.

2.Meanwhile, engineers will teach how to operation, maintain for buyer’s engineers, worker on site.

3.We also offer long term technical guidance.


1.How about the quality about this machine?

Answer: yes,my friend,please rest assured,we have nearly 10 years experience for this machine.quality is no problem.


2.How about the output about this machine?is the data real?

Answer: my friend,we have tested that machine many times,then get this data,it is real and can meet your need.


3.Wether you deliver in time?

Answer: sure,once we receive your payment, then delivery immediately.


4.What about your after service?

Answer: we can send our engineers to you factory and offer long term technical guidance.
