Waste dirty PET bottle flakes recycling washing line plant

  • 1 - 1 Sets
    $120,000.00
  • >=2 Sets
    $110,000.00
Model Number:
BDX-300-2000
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 60 Negotiable
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets) Less
Samples:
$20.00 /Set | 1 Set (Min. Order) | Buy Samples
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Warranty:
1 year
After-sales Service Provided:
Video technical support, Free spare parts, Field maintenance and repair service, Online support, Engineers available to service machinery overseas
Place of Origin:
China
Brand Name:
Sevenstars
Voltage:
380v 50hz 3phase or customized
Certification:
ISO9001-2000
Application:
Waste PET Bottle Recycling
Automatic Grade:
Automatic
Dimension(L*W*H):
45000*5000*5000mm
Applicable Industries:
Food & Beverage Factory, Construction works , Energy & Mining
Key Selling Points:
Energy saving
Production Capacity (kg/h):
1000
Machine material:
Stainless steel 304/316
PET flakes size:
8-18mm
machine new design 1:
new dewater machine
machine new design 2:
new friction machine
final PET flakes moisture:
<1%
PVC content:
<50ppm
Weight:
20-30tons
Power(W):
100-250KW
Supply Ability
Supply Ability:
30 Set/Sets per Year for PET bottle flakes recycling washing plant
Packaging & Delivery
Packaging Details
1sete of Waste PET bottle flakes recycling washing plant from China with packing film
Port
shanghai seaport
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 60 To be negotiated
Product Description

 Waste PET bottle flakes recycling washing plant from China

          PET bottle flakes recycling washing plant



General Introduction



 1. Application:    This machine used for crushing washing drying the waste PET bottles,

                            getting clean and dry PET flakes.



2. Manufacturing : Zhangjiagang Sevenstars Machinery Co.,Ltd produce this machine for 10 years.

                              washing line made of stainless steel 304 and 316. and Sevenstars Machinery

                             Factory is researching  and developing this machine, and now the machine is muture.

                             the moisture of final clean pet flakes less than 2%.



3. New design:      the dewatering unit and the friction machine unit this dewatering unit and

                            the friction machine unit rotary speed is 2200rpm,  while the old one is 1200rpm.

                            thus getting more clean and dryer pet flakes.





4. machine capacity: 300kg/h, 500kg/h, 1000kg/h,1500kg/h,2000kg/h

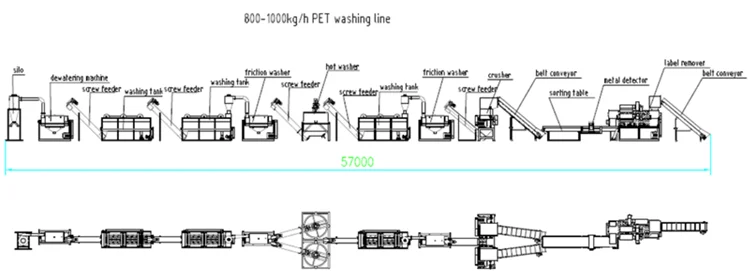

5. machine flow line: take the 800-1000kg/h capacity for example.

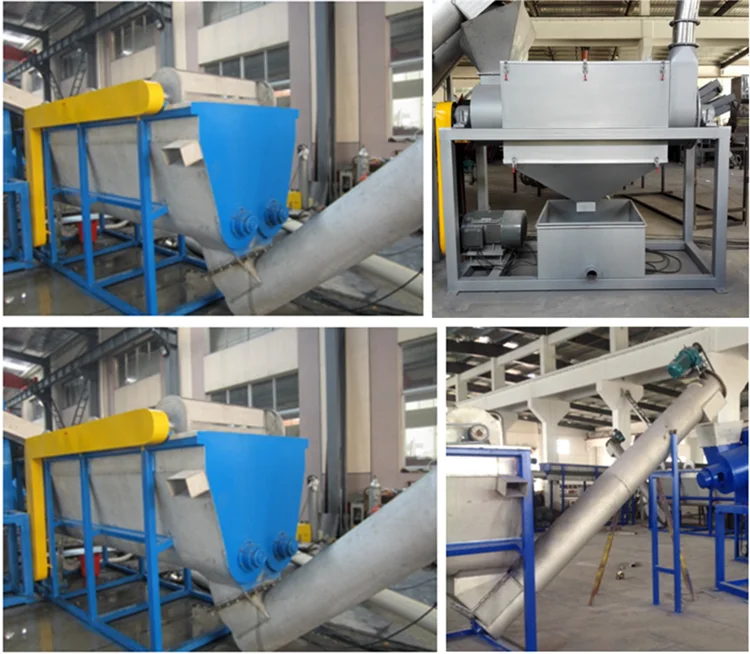

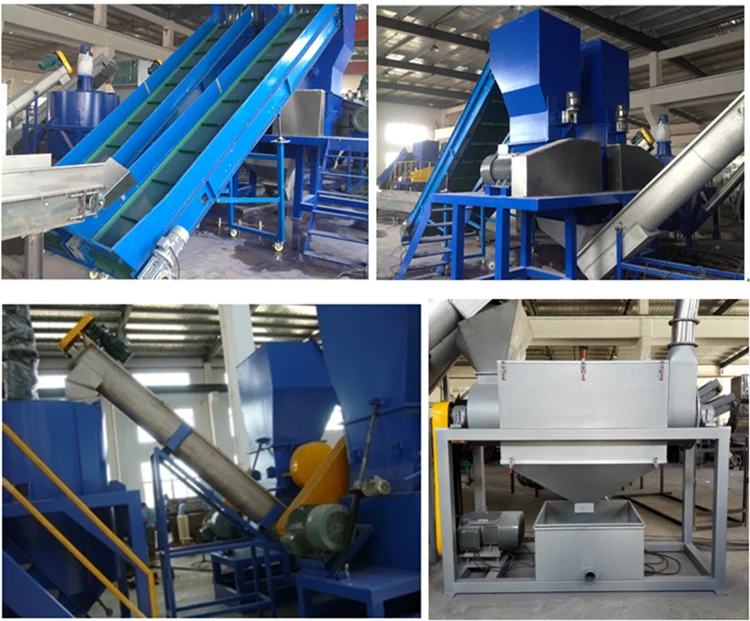

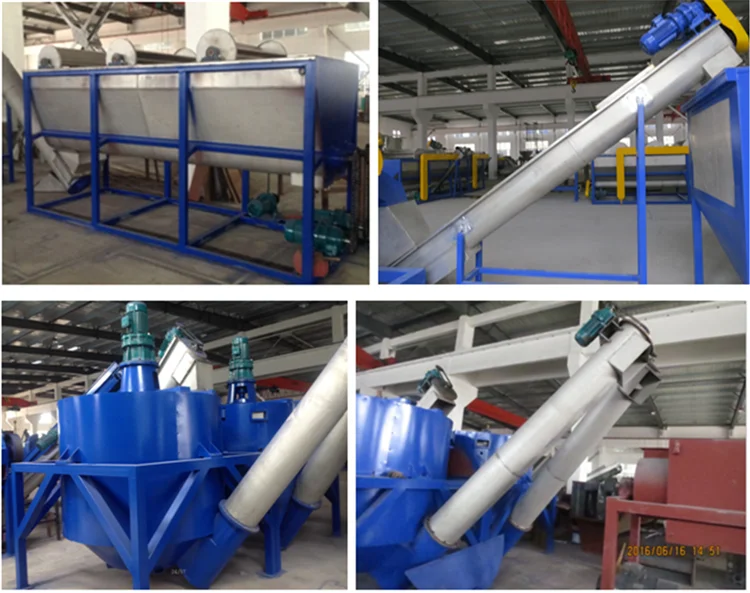

6. photos of PET bottle recycling washing line

PET Bottle recycling washing line (1)_.pngPET Bottle recycling washing line (2)_.pngPET Bottle recycling washing line (3)_.pngPET Bottle recycling washing line (4)_.pngPET Bottle recycling washing line (5)_.png



6. machine unit simple description:





No

Machine name

Qty

Application

1

Belt conveyor

1Set

Convey (transport) waste bottle to next step

2

Single shaft label remover

1Set

Remove plastic label from the bottle

3

sorting belt & metal detector

1Set

Pick out non-PET bottles & metals and others by hand, improve purity of flakes

4

Belt conveyor

1Set

Convey bottle to next step

5

PC800 Plastic crusher

1Set

Crush the bottle into PET flake around size 16mm

6

Screw conveyor

1Set

Convey small PET flakes to next step- hot washer

7

Hot washer

1Set

Remove oil and glue and loosen other stubborn dirt from the PET flakes

8

Screw conveyor

1Set

Convey bottle to next step-friction washer

9

High speed Friction washer

1Set

Again remove paper and glue and other dirt from PET flake

10

Single screw floating washer-1st

1Set

Rinse the PET flakes and remove the dirty water from flakes during washing

11

Single screw floating washer-2nd

1Set

Again Rinse PET flakes and remove the dirty water from flakes during washing

12

Dewatering machine- New type

1Set

Centrifugal dewatering the water from the PET flake

13

Label dust separator

1Set

Remove remaining plastic labels , caps, dust etc, improving the purity of good flakes

14

Storage silo

1Set

Store the pet flake into silo

15

Electric control box

1Set

Control the whole line

Auxiliary (side) machine you need

1

Blade sharpener

1set

A mature flake producers, they know the crusher blade need sharpen everyday

2

Waste water treatment

1set

Recycle use the water, save much cost.  (you can also build by your self )

3

Hot steam boiler

1set

Provide the hot steam for the hot washer tank



Company Information

Zhangjiagang Sevenstars Machinery Co.,Ltd based in zhangjiagang city near shanghai. famous for producing all kinds of plastic recycling machine, like pet bottle washing line and pet pellet making machine. PP PE washing line and PP PE  granule making machine.etc

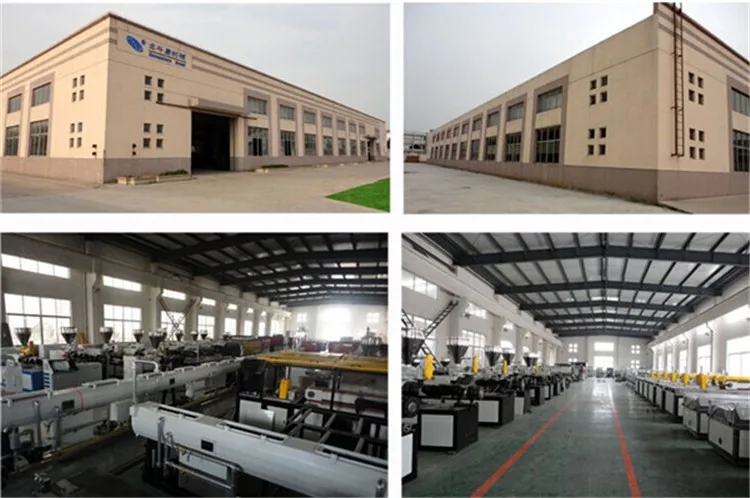

_MG_0571_.jpg_MG_0583_.jpg_MG_0632_.jpgcertificate_.jpgfactory photo (1)_.jpg
