Sevenstars plastic granule flakes drying mixing mixer machine

  • >=1 Sets
    $6,000.00
Model Number:
SRL-Z SERIES
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets) Less
Samples:
$10.00 /Set | 1 Set (Min. Order) | Buy Samples
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Place of Origin:
China
Brand Name:
SEVENSTARS
Voltage:
380V or customized
Certification:
CE&ISO9001
Application:
PVC/PE/PP/ABS material, mixing, drying , storing
Automatic Grade:
Automatic
Dimension(L*W*H):
depend on model
Material:
Stainless Steel
Applicable Industries:
Manufacturing Plant
Output (kg/h):
200 - 10000
Weight (KG):
1000 KG
After Warranty Service:
Video technical support, Online support
Local Service Location:
Egypt, Turkey, Philippines, Saudi Arabia, Pakistan, India, Russia, Algeria, Bangladesh, Ukraine
Showroom Location:
Egypt, Turkey, Philippines, Saudi Arabia, Pakistan, India, Russia, Algeria, Bangladesh, Ukraine
After-sales Service Provided:
Engineers available to service machinery overseas
Color:
customized
Raw material:
granules, flakes, heavy powder
Bearing:
NSK bearing
Motor:
TECO or ABB
Drying method:
hot air drying way
Type of machine:
vertical
Name:
vertical stirring plastic mixing hopper dryer machine
Production Capacity:
500-10000kg/h
Warranty:
1 year
Supply Ability
Supply Ability:
10 Set/Sets per Month (plastic raw material mixer machine)
Packaging & Delivery
Packaging Details
wooden case for plastic raw material mixer machine
Port
shanghai

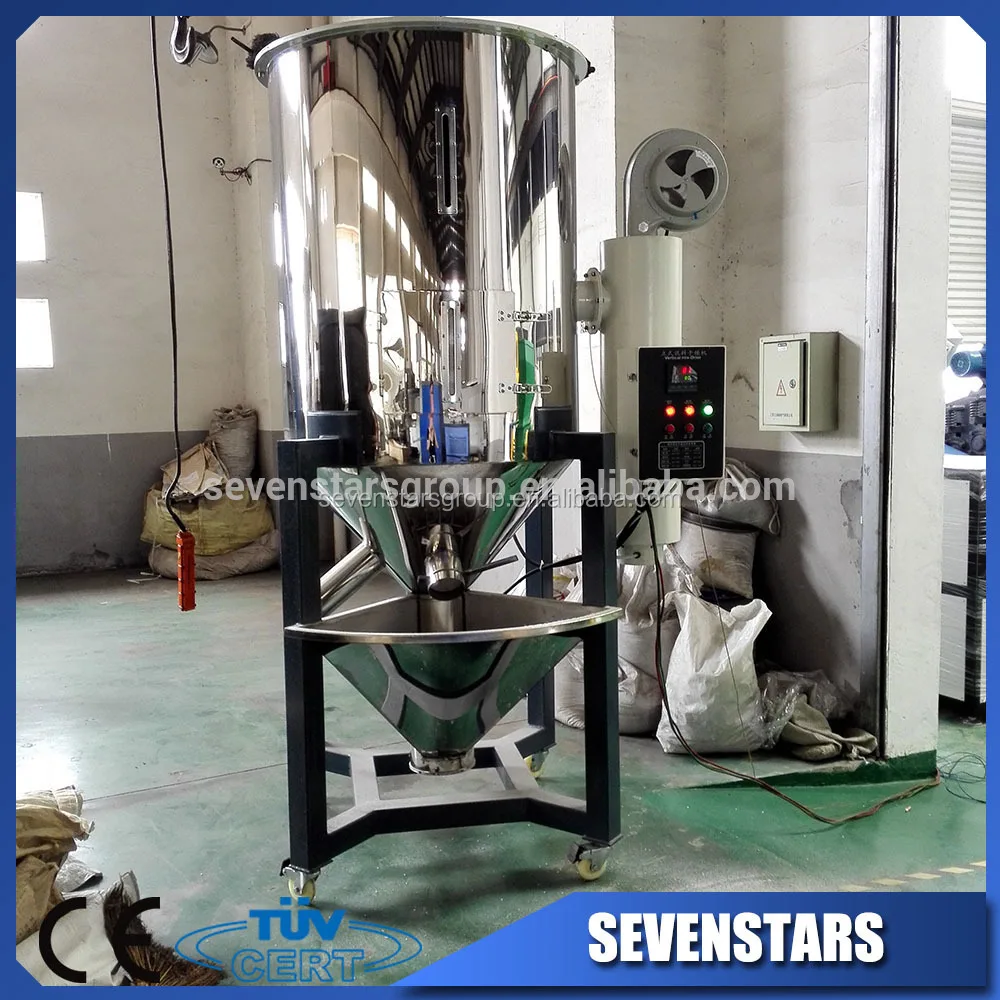

Sevenstars vertical stirring plastic mixing hopper dryer machine





Advantages

1.Circular mixture ,fast and equal stirring.

2,Suitable for all kind of  plastic raw material & color.

3,Fully stainless steel contracting parts ,rust free & easy to clean.

4,Installed with power control device to ensure safety.

5,Drying &mixing type is available(optional).

Specifications

Sevenstars vertical stirring plastic mixing dryer hopper
1 mix plastic material  ,drying material ,storing material
2 vertical type mixing dryer hopper
3 stainless vertical mixer dryer hopper
4 CE quality mixing dryer hopper equipment

Application of vertical mixing dryer

The vertical mixer can be used for plastic granules, hard chips, flakes, animal feeds, heavy powder and so on.



Specification of vertical mixing dryer

1, stainless steel tank body, 304stainless, anti rust corrosion and easy to wash;
2, rigid design construction vertical mixer, solid and durable;

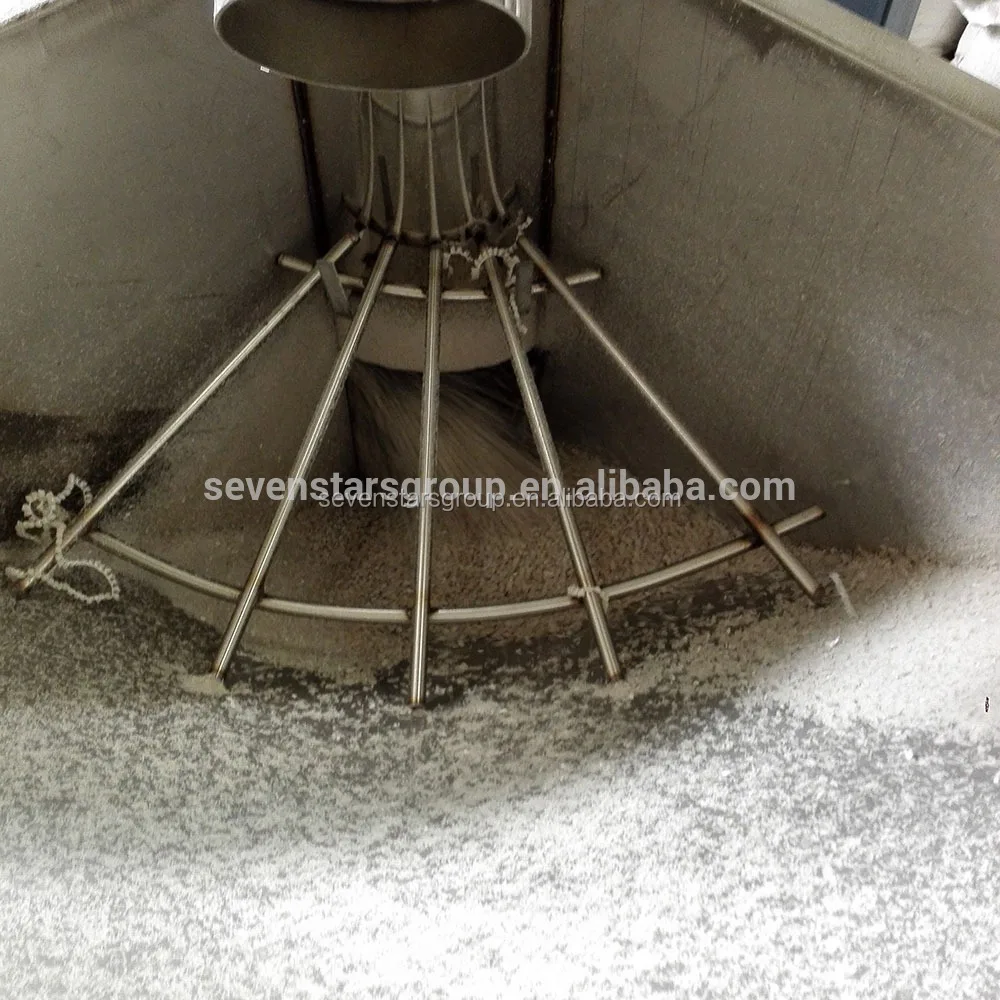

3, inner mixer propeller is wholly processed after welding, with high concentricity and steady operation;
4, standing model, occupy little space in the plant;
5, low power consumption but large capacity with fast speed to realize uniform mixture in 5-10 minutes;



Working principle:

The series vertical stirrers are able to perform even mixture for large volume of material in short mixing time by utilizing the paddles rotation to gather the material from the bottom of dump center to the top ,shed the material flow back to the bottom and complete the mixing function in a short period of time .



Technical parameters



 Power(HPCapacityRotating speedVoltageDimensionsWeight

Model

(kw)(kg)(r/min)(v)or customized (mm)(kg)
5003        45003003801450*1100*2000450
10004      5.510003003801780*1380*3100630
20005.5    7.520003003801980*1680*36101050
30007.5    1030003003802450*2130*37001250
1000-Y4      5.510003003801780*1700*3100710
2000-Y5.5    7.530003003801980*2000*36101150





Product show



.jpg.jpg3.jpg2.jpg4.jpg beidouxing.jpg .jpgSunny  .jpg

Welcom  to inquiry me !
