315-630mm PE pipe production line

FOB Reference Price:Get Latest Price
$30,000.00 - $50,000.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
BDX
Max Pipe Diameter:
800mm
Lead Time:
Quantity(Sets) 1 - 2 >2
Est. Time(days) 55 Negotiable
Report Suspicious Activity
Overview
Quick Details
Warranty:
1 year
Production Capacity:
200-300
Power(W):
customized
After-sales Service Provided:
Online support, Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Engineers available to service machinery overseas
Application:
Energy Supply Pipe
Place of Origin:
Jiangsu, China
Brand Name:
SEVENSTARS
Dimension(L*W*H):
customized
Diameter:
16mm - 800mm
Center height:
1000mm - 1300mm
Line length:
35m - 68m
Pipe extrusion line:
PE pipe production line
Condition:
New
Type:
Pipe Production Line
Pipe Material:
PE
Voltage:
customized
Weight:
customized
Certification:
CE
Supply Ability
Supply Ability:
2 Set/Sets per Month
Packaging & Delivery
Packaging Details
export packing for PE pipe production line
Port
shanghai
Lead Time :
Quantity(Sets) 1 - 2 >2
Est. Time(days) 55 To be negotiated

PE pipe production line



1) Process flow



Raw material + additive → mixing → vacuum feeding machine → hopper dryer → single screw extruder → color code extruder → mould and calibrator → vacuum forming machine → cooling tank → haul off machine → cutting machine → discharging rack



2) Technical parameter



Model number

PE-16/63

PE-20/110

PE-50/160

PE-75/250

PE-110/315

PE-200/450

PE-315/630

PE-400/800

Pipe diameter

16-63mm

20-110mm

50-160mm

75-250mm

110-315mm

200-450mm

315-630mm

400-800mm

Max output

150kg/h

200kg/h

350kg/h

350kg/h

350kg/h

450kg/h

850kg/h

850kg/h

Production rate

1-15m/min

1.2-12m/min

0.6-8m/min

0.5-4m/min

0.4-3.7m/min

0.3-3m/min

0.2-2m/min

0.1-1 m/min

Extruder model

SJ-65/30

SJ-65/33

SJ-75/33

SJ-75/33

SJ-75/33

SJ-90/33

SJ-120/33

SJ-120/33

Installed power

85kw

110kw

125kw

180kw

260kw

325kw

480kw

600kw

Center height

1000mm

1000mm

1000mm

1000mm

1100mm

1100mm

1200mm

1300

Installation area

35x3.0x2.0m

38*3.1*2.2m

38*3.1*2.2m

40*3.2*2.4m

42*3.2*2.4m

52*3.3*2.6 m

60*3.5*2.8m

68*3.6*3.0m





Detailed Images



Our Services



Exhibitions









Company Information

Our company, Zhangjiagang Sevenstars Machinery Co.,ltd is one of the most professional manufacturer in zhangjiagang city, we have more than twelve years experience in this field, if you have any inquiry about this machine, welcome to contact with me at any time.

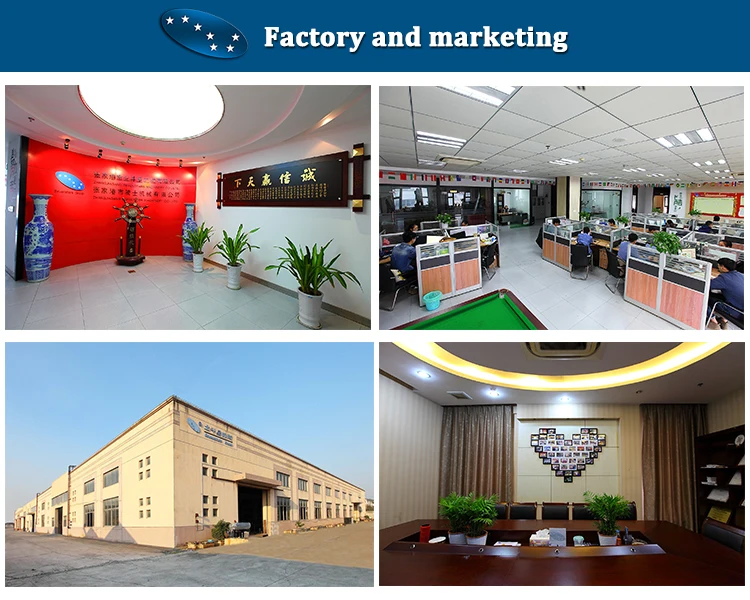

Our factory show:







Contact Information
